Dynomotion wiki

Welcome to our wiki where you can find and share knowledge on Dynomotion's systems.  To begin adding information to this wiki, simply create an account, verify your email, and start editing (click pencil icon). To make editing pages easier for everyone, we have installed a visual editor by default.  This visual editor allows you to edit a wiki page much like you would a standard word processing document.  For the seasoned wiki editors, standard MediaWiki editing may also be used.


Warning: Use at your own risk.  Information is for example purposes only and may contain errors.  It is up to the User to verify the information is correct and is safe to use. In no case will any contributor or Dynomotion be liable for incorrect information.  Dynomotion reserves the right to modify or delete any contributions.


Thanks for Contributing!

Official Dynomotion Site

Editing and Creating Wiki Pages

Unintuitively, you first create a link to the page you want to make before you can make the page.  To make a new page: while editing, right-click where you want your link to be, insert a link with a descriptive title and link text, save the page, click on the link you created, then click on "Empty Page" to begin editing your new page.

Here are a few other quick tips:

  • You can insert links or images by Right-Clicking with the mouse on the line where you want the link or image to appear.
  • For Spell Correction you can use Ctrl-Right-Click.
  • To insert a YouTube Video use an EmbedVideo command such as  {{#ev:youtube|xxxxx}} with xxxxx changed to the Video ID.
  • Choose a descriptive page name and link text when creating a new page: e.g. Not "My Machine", but rather "Brand X Three Axis Milling Machine Retrofit"
  • Create pages in an organized manner: Describe what the page is about, create clear sections that flow

For more information:

How to create a new wiki page

How to Edit and insert Media into your wiki pages

Dynomotion Software Topics

Installation Topics

Archive of Test Releases:

KMotion.exe Executive Software Topics

KMotion.exe is the main program that is used to configure settings in KFLOP, initialize axes, and to write C programs to configure and setup KFLOP to control your system. In this program you can plot step response, test movement, view Bode plots, monitor I/O, set filter parameters, and generally set the pertinent parameters.


Configuration Topics

Channels, Channels, Channels what are they?

Read Article Here


How to Setup Backlash Compensation

Read Article Here


PWM Output Mode

Read Article Here

KMotionCNC Software Topics

KMotionCNC is Dynomotion's CNC program used as a graphical user interface to your KFLOP-enabled machine tool. KMotionCNC has all of the basic functionality you need to run a machine of up to 6 axes, in addition to spindle control.

  • Insert pages for other KMotionCNC-related general topics here


Using KMotionCNC

  • Homing discussion - page to be created
  • Insert other KMotionCNC use pages here

Internal/concave Path Tool Radius Compensation Example G41/G42

Known KMotionCNC CAD/CAM Post Processors

Invoking C Programs with Execute Only for previously Downloaded Programs

Rigid Tapping G84 Setup and Use

Tool Length/Offsets G43Hn G49

Customize KMotionCNC

KMotionCNC is written as a Windows C++ MFC (Microsoft Foundation Classes) program developed in Visual Studio.  Source code is provided and may be customized using Visual Studio.  MFC Support is a requirement.

General Information
Compiling KMotionCNC
The KMotionCNC's Visual Studio Project Solution (\PC VC Programs\KMotionCNC\KMotionCNC.sln) is currently written for Visual Studio 2015 Standard.  This version can be used for the simplest compatibility.  Projects can be upgraded to newer version of VS with minimal effort.  Including Microsoft's Free Visual Studio 2013 Community.  More info on PC Example Applications.
Note Test Versions 4.34a and later have project solutions targeted for Visual Studio 2015 Community which is free for most Users.
KMotionCNC Customization Examples and Applications
Links to examples of projects that explain KMotionCNC customizations. Troy (tmday7) created some helpful documents (PDF format):

KMotionCNC Screen Editor

Introduces the capability of using Screen Script files to modify the look and function of KMotionCNC.
More information.

KMotionCNC Geometric Correction

Information regarding the powerful Geometric Correction capability which allows calibration and distortion correction of the XY CAD space to Machine/Actuator Space as well as flatness in Z.  Simple 4 point correction tables can apply XY Scale, Rotation, skew, offset, tilt.  Larger tables can apply more non-linear corrections.

Note the Geometric Correction is built into the KMotion Libraries and can be utilized by Custom Programs as well as with KMotionCNC
More information and Examples.

PC Example Applications

A number of PC Applications using the KMotion Libraries are available in the Software download.  Visual Studio should be used to modify/compile the applications.


Note All the projects in KMotion Versions 4.34a and later have now been updated and should work out-of-the-box with VS2015.

More information.

KMotion Libraries - GCode Interpreter - Trajectory Planner - Coordinated Motion - .NET

The KMotion Libraries are a series of DLLs (Dynamic Link Libraries) that reside on the PC that contain the common core motion control, I/O, and communication functionality for KFLOP.  These libraries permit PC Applications to be built using high level control without being concerned with the underlying details of Interpreting GCode, Trajectory Planning, Coordinated Motion, Motion Buffering, USB Communication, etc.

More information.

Kinematics

The KMotion Libraries contain a Kinematics Layer where Users can add their own non-linear Kinematics

More information.

KFLOP C Programs

C Programs provide a powerful and flexible capability to perform almost any sequence of operations within KFLOP.   In most cases after you have tested and tuned all your hardware using the KMotion.exe setup program all the settings and initialization steps required for your system can be placed into an Initialization C Program so that your system can be fully initialized simply by executing the Initialization program.

More Information


ModBus

Modbus can be connected to the PC or directly to KFLOP.  A PC connection will not be deterministically real-time but may work for basic speed control and on/off.  Here is a related Thread for interfacing KMotionCNC to Modbus using a free utility:

Sending ModBus msgs from KmotionCNC to a RS485 port


To connect Modbus directly to KFLOP's UART see the C Examples in \C Programs\RS232\ModBus\

Linux Support

KMotion Motion Libraries are fully supported under Microsoft Windows. Some Users have ported the KMotion Libraries to Linux.  Dynomotion will offer support where possible but can't offer full support under Linux.  Special Thanks to Par Hansson for the initial Linux Port.

See here for more info.

Dynomotion Hardware Topics

General Hardware Information

KFLOP specific Hardware Info

KStep specific Hardware Info

Kanalog specific Hardware Info

SnapAmp specific Hardware Info

Konnect specific Hardware Info

Wiring Diagrams

Basic Kanalog DAC and Encoder Connections 3 Axis

Basic Kanalog DAC and Encoder Connections 3 Axis #2

Basic Kanalog DAC and DMM DYN4 Drive 1 Axis

Kanalog with Geckos G210 updated 11-19-2018 (Thanks to Joseph Mirocha)

Kanalog to Tree Journeyman 325.pdf (Thanks to Rick_B)

KFLOP+SnapAmp DC Brush Motors with MPG

KFLOP JP5 Open Collector Step/Dir Connections to Power Step PSD5042-2P Drives

KFLOP+KStep with VFD and NPN Limit Switches for Matrika Rev1

Touch Plate Wiring to Konnect

User Created KFLOP JP7 Breakout/OptoIsolation Board Schematic, Gerbers, PCBs Publicly available (thanks 350banshee)

Rotary Switch Connected to Kanalog Opto Inputs

3D Board Models

kflop-kstep-3d-models-1.snapshot.3.zip.txt  STEP file format - Thanks to Curtis

kflop kstep render.JPG



KFLOP3D_Step_IGS_Chris.zip.txt STEP and IGS models - Thanks to Chris

KFLOP 3D.png


KONNECT_BOARD_MODEL.zip.txt STEP model - Thanks to Jeff Redington

(Component locations may be off one way or another by .5mm)

Konnect Board.png


Konnect Basic Step file showing hole locations

KonnectHoles.stp.txt



Kanalog Step Model with Mechanical hole and Pin locations

Kanalog.stp.txt



Kanalog Step Model with Mechanical hole and Connectors (Thanks to

Roberto Gotti of Powertech)

KANALOG_BOARD.stp.txt


Wiring Topics

Place links to pages on wiring inputs and

outputs specific to your experiences and projects.  Be descriptive with page titles and links.



KFLOP IDC 连接器和电缆

一起购买板时，通常会包含连接 Dynomotion 板之间的电缆。它们也很常见且易于制作。

使用16 芯或 26 芯带状电缆（0.05 英寸间距，最好是 26 AWG 或 28 AWG）和 IDC 插座。


16 芯带状电缆 3M 部件号 3801/16 100
https://www.digikey.com/product-detail/en/3m/3801-16-100/3M156105-100-ND/1107501

26 芯带状电缆 3M 部件号 C3801 /26 100
https://www.digikey.com/product-detail/en/3m/C3801-26-100/C3801-26-100-ND/1107648

Winford 还销售带状电缆（尽管只有较细的 28 AWG）：
http://www.winford.com/products/rib.php

36 芯带状电缆 3M 部件号 3801/16 100

https://www.ichome.com/inventory


请注意，您通常可以撕掉电线以减少导体数量。例如，从 26 减少到 16。将导线从标记引脚 1 的红色条纹上撕下来。压接工具



很常见：https emoticon/www.amazon.com/Accessories-Crimp-Ribbon-Cable-Connectors/dp/ B007R2JEM4/ IDC 插座 16 针（针距 0.1 英寸）https://www.digikey.com/product-detail/en/assmann-wsw-components/AWP-16-7240-T/HHKC16H-ND/5031953 Assman 零件编号 AWP 16-7240-T






IDC 插座 26 针（针距 0.1 英寸）

https://www.digikey.com/product-detail/en/assmann-wsw-components/AWP-26-7240-T/HHKC26H-ND/5011313


KFLOP KStep JR1 Molex Power Connectors

KFLOP and KStep JR1 are standard Disk Drive Power Connectors. Possibly one of the most common connectors. Originally used on PC ATX Power Supplies. Sometimes referred to as Molex Connectors. They have 4 pins with 0.2 inch pitch with 0.083~0.084 inch socket pins. The mating cable will have female socket pins as shown here:

Molex female connector.jpg


Molex Series 8981 P# 0015244048  using Molex Series 8980 Crimp Pins P# 0002081201

Also AMP Series MATE-N-LOK P# 1-480424-0 using AMP Series MATE-N-LOK Crimp Pins P# 60619-1

MPG Wiring and Interface

MPGs (Manual Pulse Generators) should be connected directly to KFLOP for guaranteed real-time response (not USB based or connected to the PC).  MPGs are handled by a C Program that monitors the MPG and creates motion based on the MPG Encoder changes and switch selections for axis, speed, and so forth.  See the MPG C Program Examples.  Here is a Discussion with other links.


Jogging Pendant

Connecting Keling MPG2 Pendant

CNCZone Thread on obtaining smooth filtered motion.

MPG4 from cnc4pc.jpg

Interfacing NPN Devices to KFLOP IO

NPN devices (open collector)operate as a switch to GND and can be interfaced to KFLOP using a pull up resistor as shown below. When the transistor switches to 0V the KFLOP IO Pin is driven low. The transistor will need to sink ~3ma. When the transistor is off (open circuit) the resistor pulls the IO Pin to 3.3V. Note even though some KFLOP IO Pins can tolerate 5V pulling them above 3.8V should be avoided when possible so the 3.3V supply is used. This technique will only work with KFLOP IO Pins that do not have pull down resistors (JP7 and JP5). In some cases a 0.1uF Ceramic capacitor connected close to KFLOP might be added in parallel with the resistor to filter noise.  Cable shielding connected to KFLOP GND on the KFLOP end only is recommended.  Note that in noisy environments this technique may couple noise into KFLOP so opto isolation should be used instead.

NPN Interface to KFLOP.png


Multiplexing Encoder Inputs to KFLOP JP4 and JP6

If KFLOP JP7 and JP5 are used for other purposes the encoder inputs can be multiplexed to KFLOP JP4 and JP6. There is an option to multiplex encoders 0-3 from JP7 to JP4 and another option to multiplex encoders 4-7 from JP5 to JP6. See the MuxEncoders.c for an example.

Note the JP4 and JP6 IO are 3.3V inputs and shouldn't be driven hard (more than 10ma) above 3.8V. This is not usually an issue as most encoders or RS422 drivers don't do this. The inputs also have 150 ohm termination.

The following line of code might be added to your Initialization C Program. It needs to be executed once to multiplex the encoders after any power cycle. Encoders 0-3 will then be input on JP4 and 4-7 will be on JP6. Both JP4 and Jp6 have 10 IO bits. The 4 encoders will appear on the first 8 IO bits. 2 bits for each encoder's A B channels in order. So for example Encoder #0 will appear on JP4 IO16 (Pin5) and IO17 (Pin6)


// Mux encoder inputs from KFLOP JP7 & JP5 to JP4 and JP6
FPGAW(ENC_NOISE_FILTER_ADD) = ENC_0_3_JP4 + ENC_4_7_JP6 + ENC_NOISE_FILTER_DEFAULT_VAL;

JP4 and JP6 have +5V available on Pin1 and GND on Pins 8 and 9 that might be used to power 5V encoders.

Axes Servo Tuning and Trajectory Planner

Basic Servo Tuning Overview

Once an axis is configured and proved capable of holding a position it is ready to be tuned and optimized. Most often a small value of P Gain only is used to show the servo is functional and can hold position. The Servo may be very weak and inaccurate but will be functional.

Every system is different and the tuning parameters are interactive in a manner that usually doesn't allow parameters to be determined one at a time. Rather after one parameter is changed it may be necessary to revisit the other parameters.

In general higher gains will reduce errors and improve accuracy, but tend to make the system more unstable.  So the general idea is to increase gains to reduce errors as much as possible but still have a stable system.

Often during tuning the system may go unstable. In fact, it is normally intentionally driven to instability to find its limits for a certain parameter. This can result in a violent oscillation or worse so one should be prepared to quickly disable the Servo. If an appropriate Max Following Error is used the axis can be automatically disabled before the oscillation becomes too violent, yet not disable when performing a normal test.

KMotion.exe allows you to change any axis parameter on the Step/Response, Config, or Filters Screens then simply push "Move" to see the effect of the change.  Note that as performance improves the errors will become small and difficult to see on the Position Plot without Zooming in (Left click drag) so changing the plot type to plot the error is useful.


The overall process normally goes something like this:

  1. Select a Test Move Size and Motion Profile.  See Also
  2. Select Max Limits to allow for the Test.  See Also
  3. Determine maximum level of P Gain
  4. Determine maximum level of D Gain (with Low Pass Filtering)  See Also here and here.
  5. Determine new maximum level of P Gain now that D Gain increased stability
  6. Add I Gain to improve accuracy and remove steady state errors.  See Also
  7. Add Feed Forward to reduce errors


Torque Servos vs Velocity Servos

+/-10V Analog Amplifiers usually come in one of two varieties: Torque or Velocity. Torque mode amplifiers consider the input command as a Torque Command and work to generate the commanded Motor Torque. Velocity mode amplifiers consider the input command as a Velocity Command and work to generate the commanded Velocity.  Its important to understand what type of Amplifiers you have.


Velocity Mode Amplifiers need some form of feedback going to the Amplifier in order for the drive to know the current velocity. This might be a digital encoder or an analog tachometer.

Its easy to tell if you have a Velocity Mode Amplifier by looking at a plot of a move on the Step Response Screen.  The Output (green plot with right scale) will be proportion to the motor velocity.  When moving at constant speed the output will be relatively constant.  See in the plot below the output (green) remains at a relatively constant ~1100 DAC counts while the position (red) ramps at a constant slope of the 90000 count/sec rate:


Velocity mode amplifiers can be relatively easy to tune using only P (Proportional) Gain.  Additional Gains and filters can be used for best performance but using only P Gain will often result in reasonable performance and a stable system (unlike Torque Mode Amplifiers).

As an example consider controlling the speed of a car using only Proportional Gain as it approaches a target (Stop sign).  Consider a P Gain of 0.1 where at 1000ft from the stop sign we command 1000 x 0.1 = 100MPH.  Then at 100ft we command 10MPH.  Then at 10ft we command 1MPH.  This results in a nice, smooth, exponential approach, without overshoot.

Contrast this with controlling the acceleration (torque) of a car using only Proportional Gain as it approaches a target (Stop sign).  At large distance we apply maximum acceleration.  Although as we approach the stop sign we reduce acceleration, we continue to accelerate and speed continues to increase until we pass the stop sign.  Torque mode servos are inherently unstable.  P only gain only works at all if there is some friction (the car is dragging a sled which slows us down with less torque).


Acceleration Mode Servos may or may not have any feedback.  If they have feedback it is usually used only to commutate a brushless motor.  In the plots the Output (green) will have large magnitude when the Position (red) is accelerating, where the plot has curvature (changing slope).

Acceleration mode Servos are unlikely to work well or at all with only P Gain.  Some form of damping or lead compensation will usually be required to get a stable system.   D (derivative) Gain (or a lead compensator) should be included with the P Gain to help stabilize the system.  D Gain can be increased to make the system more stable up to a point.  After some point the additional D Gain will make the system more unstable. and should be reduced.

When using D Gain (or lead compensation) the quantization noise (steps) in the encoder position can cause spikes in the output.  For example a D Gain of 100 will cause a spike of 100 counts in the output whenever the input changes suddenly by 1 count.  If the spikes are very high amplitude and short duration, the Amplifier may not handle them in the expected manner.  A low pass filter can be used to widen and reduce their amplitude allowing the amplifier to handle them more effectively.  Typically a 2nd order low pass filter of 500Hz Q=1.4 is used.  The last filter is normally used so it is applied to any Feed Forward. Such as:


Velocity, Acceleration, and Jerk

The Velocity, Acceleration, and Jerk in the Step Response Screen (KFLOP parameter settings) and the Acceleration and Velocity in the KMotionCNC | Tool Setup | Trajectory Planner | Axis Parameters are both used for different things.  The two sets of parameters are independent.

The KFLOP parameters are used for 3rd order motions.   These include things like:  Jogging, Homing, and GCode Rapids (G0).  The units in KFLOP are in counts or steps.

The KMotionCNC parameters are used for 2nd order (infinite Jerk) coordinated motion paths.  These are GCode G1,G2,G3 continuous paths.  The units are in Inches (or in some cases degrees).   Note there is an Option in KMotionCNC "Rapids as Feeds" where these parameters will also be used for Rapids.  But this option should only be used for highly non-linear Kinematic Systems which can not take advantage of faster/smoother 3rd order point to point straight line Rapids.

Tests to find and verify optimal settings for both types of moves should be made using the Step Response Screen.  Optimal settings are usually determined by experimentation.  Although it might be possible to calculate the settings based on motor torque gains, back-emf, amplifier voltage/current, mass, moments of inertia, friction, encoder resolution, leadscrew pitch, required following accuracy, etc... It is often too complicated and with too many unknowns to be practical.  So experimental moves can be tested at ever increasing Velocities, Accelerations, and Jerks until the system is unable to follow the trajectory without having too much error or shock to the system.  After absolute limits of the system are determined then the settings should be backed off by some amount to provide operating margins (ie 20%).

It is usually best to first determine max possible velocity using a relatively low acceleration. Maximum power is usually required at the point of the trajectory where velocity is high and still accelerating.  Supply Voltage limitations tend to limit velocity.  Current limitations tend to limit acceleration.


The Step Response Screen always performs 3rd order motion but 2nd order motion can be simulated by temporarily setting the Jerk to a huge value (1000X the acceleration value).  In general reducing the Jerk value will result in longer times to perform motions, but often the improved smoothness will permit higher maximum accelerations and velocities to be used resulting in overall shorter motion times.  An analogy might be how you might stop more quickly in a car, without skidding or spilling your coffee, by applying the brakes harder in a more gradual manner rather than slamming on the brakes.

Make sure when testing the size of move is long enough for full acceleration and velocity are achieved.  A common mistake is to have Acceleration or Velocity Settings set to too high for your system but when testing a short move there is no indication of a problem.  The plot mode of Velocity Output  vs Time can be helpful to verify full Velocity is being achieved.

The idea is that a motor axis has torque and speed limitations and you should determine and understand what they both are for your system. Available motor torque drops off with higher speed. At some speed the motor will not even be able to generate any torque at all. Motor torque is required to accelerate the axis. We need to make sure that no combination of velocity and acceleration will ever cause the axis to fault/stall/fail. So there is often a complex set of speeds and accelerations that will work ok that form an envelope of workable speed and acceleration. So one nice thing to know is top speed possible. It is like taking your car out on a long straight highway and gradually accelerating to find the max speed is 100MPH. You will then know that ever attempting a speed over 100MPH will always fail. Also speed should probably be limited to something like 80MPH to allow for margin and to allow reasonable acceleration up to that speed. The reason for performing the top speed test at low acceleration is to avoid a failure because of not being able to accelerate at the specified rate. So we want to set the acceleration to a low value so it will not be a limiting factor when determining top speed. However if we set the acceleration so low with a short trip distance we will never go very fast and the speed test will be meaningless. This should be avoided. Change the Plot type to Velocity, Output, vs Time to clearly see if this is the case.  You may want to turn off Measured Velocity if it obscures viewing the Commanded Velocity

For example to accelerate to 700,000 counts/sec at an acceleration rate of 700,000 counts/sec^2 would take 1 second. And then to slow back down would take 1 more second. So at least 2 seconds of motion would be required to get to full speed. A 100,000 count move (2 inches for a system with 50,000 counts/inch) takes much less time than that. Furthermore with a relatively low Jerk setting (1e6). This means the acceleration will be applied gradually over 0.7 seconds. This means an even much longer time and distance would be required to achieve top speed.

Here is the method to follow to find 2nd/3rd order motion profile limits:
(note every system is different and will vary based on resolution, motor size/type, mass, etc...)

1 - Find Max Velocity at low Acceleration and infinite Jerk

Choose a Velocity to test (ie V=100000 counts/sec)
Set a moderately low Acceleration Time of 1 second (A = V/1sec = 100000 counts/sec^2)
Set very high Jerk so Acceleration is applied almost instantaneously in 0.001 sec (J = A/0.001sec = 1e8 counst/sec^3)
Test a very long move 20 inches if possible (for resolution 50000 counts/inch, 1,000,000 counts)
Plot Velocity, Output, vs time to see if V is actually obtained
If the motion was successful repeat all above with higher V, if not try lower V

Once Max V is found reduce by some margin (ie 20-50%)

Note you may decide on lower speed for other reasons (safety, vibration, noise, wobble, shock, etc....)

2 - Find Max Acceleration for your system for the chosen Velocity

Using the V found above increase A (keeping Jerk high in the same manner) until the system fails/faults/excessive shock, etc...

Once Max A is found reduce by some margin (ie 20-50%)

These V and A Values are now known good values for your system and can be used for 2nd order motions such as KMotionCNC Trajectory Planner or Mach3 Motor tuning. Note units will need to be converted (counts to inches or mm, time from seconds to minutes depending on the App)


3 - Find optimal 3rd order Jerk limited motions.

The previous result from Step #1 and #2 used nearly infinite Jerk where Acceleration forces were applied nearly instantaneously. By reducing Jerk smoother motion should be possible.

Set Jerk so it is applied over 20ms (ie for A=200000 J = A/0.020 = 1e7

Test to see if motions are smoother. With closed loop systems the Position Error Plot can be used to see if the motion has less error and is smoother. Open loop system will require you to hear the difference.

Increase/decrease Jerk to find the optimal value. Note reducing Jerk a lot will of course make the system very smooth, but will also be much slower using less acceleration and velocity which is undesirable. So the highest Jerk possible should be found that still provides some smoothness.

Reducing Jerk only will always make the system slower with less performance (but hopefully significantly smoother). It is usually then possible to increase Acceleration and Velocity somewhat to achieve even higher performance than what was possible with infinite Jerk while being as smooth or smoother.

4 - Reduce Max Following Error Limit to small value

Now that the system is properly tuned and reasonable Acceleration, Velocity, and Jerk are set the motor Position should always follow the commanded Destinations accurately with only small errors.  By Plotting Position Errors under various conditions (Distances) you can get an idea of the worst case following errors under normal conditions.  The Max Following Error Parameter should be set to a value slightly larger than the worst case following error (ie 20~50% larger).  In this case if anything abnormal occurs: ie. The axis hits an obstacle, commanded at too high of a speed, servo goes unstable, hardware/electronics failure, a Following Error will be immediately detected and the axes disabled.

Axis Resolution - counts/inch (or counts/mm)

Its important to understand the resolution of your Axis which is the number of fundamental raw motor/driver encoder counts or motor steps per standard unit of distance (inch or mm).  Although tuning in KMotion.exe Step Response Screen and motions within KFLOP typically use units of raw counts or steps it is important to know how these translate to real-world distances, speeds, etc...  Later, applications such as KMotionCNC or Mach3 will need this information to scale motions properly.
There are usually a number of factors that combine together to determine the Axis Resolution.  These might include:
  • counts or steps per motor revolution
  • any gearing or belts and pulleys involved between motor and drive mechanisms
  • lead screw pitch, rack and pinion tooth pitch, drive belt radius, etc.


For example consider a Stepper Drive with:

3200 steps per motor rev

2:1 gear reduction from motor to lead screw

0.2 inch lead screw pitch


Axis Resolution = 3200 step/motor rev x (2 motor rev/ screw rev)  / (0.2 inch / screw rev) = 32000 steps/inch


To determine whether your assumptions and calculations are correct perform a test.  Command as large of a move as convenient and measure the actual distance moved with a ruler.   For example in the axis described above you might command a move of 320000 steps.  This should result in a motion of:

320000 steps / (32000 steps/inch) = 10 inches.


For KMotionCNC set the Axis Resolution in the Tool Setup | Trajectory Planner Screen | Axis Parameters | cnts/inch.  Note units must be in units of inches.  If your resolution is in mm units multiply by 25.4.


For Mach3 enter the Axis Resolution in the Configuration | Motor Tuning Screen.  Make sure the setup units (not GCode units) match the mode of your values.


Servo Dither/Hunting - (oscillation around zero error)

Servos have high accuracy because they are always actively trying to make corrections and drive the error to zero.  Unfortunately this can sometimes cause annoying dither or position hunting around zero when not moving.  This is a very complex non-linear effect dependent on the dynamics of the mechanics.  Because of the highly non-linear quantization effects of single "steps" in the encoder position, stiction, backlash, etc. it follows different rules and is harder to analyze than normal servo tuning/stability in the larger magnitude more linear regime.  For example attempting to apply "Damping" is unlikely to work.

Lowering gains will usually help at the expense of performance.  However in many cases more than acceptable performance can be achieved with lower gains so one should consider if the higher gains are really needed.

KFLOP has a Deadband Gain and Range feature that can basically be used to tell the servo to not attempt to correct small errors (treat the errors as zero), or to try to correct them less aggressively (with a Gain less than 1.0).  See here for more information

Unfortunately adding Deadband doesn't always help the servo "sit still" and may actually increase the size of the dither depending on the dynamics.


Note that when the servo is commanded to a non integer position ie 999999.7 encoder counts without deadband the servo will always be making corrections.  The best the servo can do is dither between encoder positions 999999.0 and 1000000.0.  With an error of either -0.7 or +0.3.  A servo with Integrator gain will guarantee the average is 999999.7

If dither is still a major problem a C Program might be used to monitor things and change settings under certain conditions to reduce dither.  See the example AntiServoDither__ALL.c which monitors for small errors for a period of time and if so reduces or turns off Integrator gain.

Noisy GCode - Trajectory Planner Smoothing

An analysis of Quantization Noise in GCode and Trajectory Planner Settings to generate smooth motion.
GCode Noisy Path.png
See Analysis and Solution

Arc "faceting" - Trajectory Planner - Collinear Tolerance

See Analysis and Solution

I Gain/Max Limit Integrator

I (Integrator) Gain can be used to eliminate persistent errors.  In fact any Integrator Gain at all guarantees the average error over infinite time is zero.  Without I Gain a system might have a small error that does not create enough output to overcome stiction to make a correction.  In such a case the error could persist forever.  Not so with any Integrator Gain.  Any error will be integrated and ramp the output higher and higher until eventually there will be a correction.  That assumes the Integrator or Output doesn't saturate or reach their programmed limits.  The rate the output ramps (or sums) is dependent on the size of the error and the I Gain value.  The Error x I Gain is summed every servo sample (90us).  This is why I Gain values are often small numbers (0.0001 - 0.01 typical range).  There is no guarantee that the position doesn't over shoot the target Destination.  In fact it is likely as as any error (area) under the trajectory will always be balanced by an equal area over the trajectory.  Too high of I Gain will make the system unstable.


Another case where I Gain is useful is when moving at high speed with a Velocity Amplifier.  To move at high speed a significant amount of output is required.  Without I Gain a significant amount of error could be required to provide this Output (ie Error x P Gain = Output).    With I Gain the Integrator will eventually ramp up to provide any Output necessary to move at the desired speed driving the error to zero.


Integrators have an issue often referred to as "Integrator Wind Up".  This issue usually doesn't arise under normal conditions.  However if something is preventing the servo from making a correction such as forcing the position away from the target for a sustained amount of time, or disabling the amplifier, the Integrator will integrate to a huge unlimited value.  When the force is removed or amplifier re-enabled, the Integrator will likely cause a violent motion and overshoot.  Max Limit Integrator can help to minimize this issue by limiting the amount the Integrator can ramp up to.  So the Max Limit Integrator Value should be set at the minimum value that can still allow the Integrator to function in normal circumstances.


Typically there are two cases that should be considered when determining the Max Limit Integrator.

  1. The amount of output expected to be required to overcome any stiction, friction, or other forces (cutting, gravity, etc...).  This is often not a large value and can be estimated or can be observed from the Step Response Screen (green plot right side scale is the output) when making a move.
  2. The amount of output required to provide the output needed to move at speed.  It is important to note that D Gain provides a damping or drag effect on the Output.  So the Integrator must be able to ramp up to a sufficient level to overcome the damping or drag effect and still provide enough output to move at the commanded speed.  For example:


Assume:

  1. Commanded speed of 500,000 counts/sec
  2. D Gain of 35
  3. Output required to move at speed is 1800 DAC Counts
  4. Servo Sample Time of 90us


Damping effect = Speed x D Gain x Sample Time = 500000 x 35 x 90e-6 = 1575 counts


Required Integrator Value = 1800 + 1575 = 3375


So to provide some margin an Max Limit Integrator Value of 3500 might be used.


Max Limits - Error

Max limits error can be helpful to have your system respond less violently in the abnormal event where an excessively large error occurs.  Normally with a properly tuned system following errors should be small.   Setting a Max limits error can cause the servo to treat errors beyond a specified limit as if they were only the size of the limit and therefore respond less so than they would otherwise.  The max limits error is normally set to a value so it is not limiting under normal circumstances.


The Plot below shows a situation where a small max limits error combined with a low P gain severely limits the Output.  In the plot below a large move (10000 counts) at a high speed (40000 counts/sec) is commanded.  Only P Gain (0.2) is used to provide the Output (green).  The max error limit of 200 combined with the low gain (0.2) limits the output to only 40 DAC counts.  Even as the true error increases to many thousands of counts, the servo is told to ignore the amount over 200.  So the output can never exceed 40 DAC counts.  The 40 DAC count limit means that the Axis is therefor not capable of providing the output necessary to keep up with the commanded motion.  The axis does the best it can with the limited output, and only does a fraction of the desired motion.



After increasing the max limits error the Output (green - right scale) now goes to a much higher value (900), and the Position (red) follows the Command (blue) to a much better degree.

Move10000 nolimit.png


Increasing the P Gain to 1.6 also applies more Output sooner and the Position follows the command still better.

Move1000 p1.6.png




Lead Compensator vs Derivative Gain

Derivative (D) Gain is often used to help stabilize a system.  It helps to think in the Frequency Domain to help understand how the two forms of compensation help.  Please read below and this for more information on the Frequency Domain.  Both Compensation methods add positive phase to help stabilize the system.  Unfortunately both methods increase gain at higher frequencies possibly causing the system to go unstable at higher frequency.  A Lead Compensator provides the benefit of positive phase but without as much gain increase at higher frequencies.  This figure shows a simplified Gain Plot comparison:



Here is a Bode Plot of a P=0.5 D=20 Compensator.   Note the KMotion.exe Bode Plot Screen has the capability of plotting the Frequency Domain Response of the PID+Filters Compensation.  Assume we desire positive phase to be added at 40Hz.  Notice the positive phase of 40 degrees at 40Hz which is good.  However the Gain increase in the 1KHz region of about 21db which is bad.



Here is a Bode Plot of a P=0.5 N1=N2=25Hz D1=D2=70Hz Compensator.   Assume we desire positive phase to be added at 40Hz.  We choose N1 N2 and D1 D2 to surround the frequency where the positive phase is desired.  Moving them further apart will increase the amount of positive phase but also increase the added Gain.  Notice the positive phase of 60 degrees at 40Hz which is good.  However the Gain increase in the 1KHz region of about 12db which is bad.  However both are improvements over the D Gain compensator.






Tuning Master/Slave Configurations

Master/Slave Configurations allow two (or more) motors to drive the same axis.  Slaves are configured to follow a Master Axis.  For example two lead screws on both sides of a gantry.

Tuning slaved axes is kind of a catch 22.  In order to tune one axis the other axis must be tuned well enough to follow and vice versa.  If possible, disconnect any mechanical linkage between the Master and Slave and test them separately without Slaving the Axes together to verify each axis Servos (can hold a position), moves at least somewhat properly, and moves in the same direction (assuming a positive Slave Gain will be used).

It is usually possible to incrementally tune each axis, at first moving slowly, then later at higher speeds, accelerations, and gains.  Only the Master Axis can be tested with the Step Response Screen.  This is because the Slave will follow any movement of the Master, but the Master will not follow movement of the Slave.  So if the Master Axis is moved all is well as both axes will move together, but if you try to move the Slave axis the two axes will fight.  The Master fighting to stay where it is, and the Slave fighting to move.

To test/tune the Slave axis temporarily reverse the Master/Slave roles to make it the Master and then test it as the Master.

Note: only the Master Axis should be included into the Coordinated Motion System.


Bode Plots

A Bode Plot is a powerful tool for characterizing and providing insight into a dynamic system. It can help determine closed loop stability, bandwidth/performance, resonant frequencies, and more. It is entirely based on the system being linear. Linear in the sense that if the amplitude of some input signal is changed then the output signal will change proportionally as well. Unfortunately most systems are not entirely linear. Stiction, backlash, encoder quantization, amplifier saturation, and other effects are non-linear. For example driving a system with a signal too small to overcome stiction will result in no output at all whereas a larger signal will result in some output. This is clearly non-linear behavior. It would be nice to use a technique that handles non-linear systems but basically none are known.

A Bode Plot is made injecting a stimulus to the system and observing how the system responds. For the reasons of non-linearity it is very important to perform a Bode Plot measurement using a representative level of stimulus similar to what the system will actually have during normal operation. If the Stimulus is not adjusted properly the result is likely to be completely invalid. Additionally the system should be reasonably tuned and stable so that it is responding in a reasonable way to the stimulus. If the system is unstable or very poorly tuned the result is likely to be completely invalid.

You might think of it somewhat like shaking a box to determine what is in it. You should shake it with enough intensity and at frequencies to get some reaction, but not so high of intensity to break or distort the object inside.

To create a Bode Plot use the KMotion.exe Bode Plot Screen. First select Plot: Time domain - Command, Position, Output vs Time and adjust the Amplitude and cutoff Freq until there is small but significant Position (red) changes (ie 50 encoder counts), at a frequency low enough that the Position at least somewhat attempts to follow the Command (blue), and where the Output (green) is not near saturation for the Drive being used.

After the Stimulus/Noise Injection settings are set switch to Plot: Open Loop - Magnitude and Phase vs Frequency. Set the number of Samples to average (ie 20) and perform a Measurement.  See here for more information.

Links to other Information on Tuning and Bode Plots

umich.edu Introduction section Control Frequency

Kollmorgen Use Control Theory to Improve Servo Performance 230712.pdf

Problems and Resolutions

General

  • Dealing with noise on inputs.  If you experience issues with inputs misreading, the issue may be noise.  This page provides examples on what might be causing noise issues and examples of how to possibly deal with noise.
  • Other

Software-Specific Problems and Resolutions

  • Place links to pages explaining resolutions to problems that are largely software-related here

KFLOP User C Programs Compiling/Launching Slowly because of Windows Defender

Hardware-Specific Problems and Resolutions

  • Place links to pages explaining resolutions to problems that are largely hardware-related

Step/Dir Drives lose 2 Steps for each pair of Direction Reversals

Applications and Projects

  • Place links to pages that explain how you accomplished your particular project.  Write clear explanations that provide background on what you did and how you did it.

换刀装置 - 线性铣刀 4 种工具 - C 程序

More linear milling tools: https://www.ichome.com/

Part Zero & Tool Height Touch Plate

Driving Hobby Servos







HiTec Type






放电加工

EDM（维基百科）是一种以高精度和细节切割材料的方法。Dynomotion 运动控制器非常适合 EDM，因为它能够动态控制进给率，包括沿切削路径反转。

有关控制器的更多信息，您可以在这里查看产品详细信息：

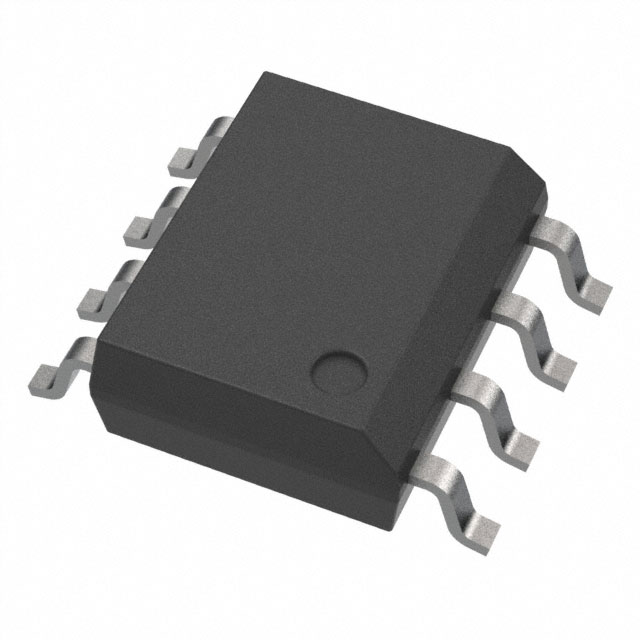

TB67H451FNG，EL

11.29 perceptive-ic.jpg


有关与 KFLOP 配合使用的 BAXEDM 电弧发生器的信息

应用科学视频展示了如何使用 KFLOP 构建 BAXEDM 钻孔机并描述其工作原理：

How to convert a milling machine to a 3D printer in 3 easy steps


More information here.

International and other Languages

Russian

Spanish

Retrieved from "https://www.dynomotion.com/wiki/index.php?title=Main_Page&oldid=656"
