Tool Changer - router linear 4 Tools - C Program

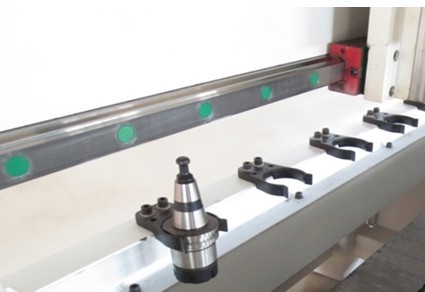

This example is for a 4 position router based tool changer for use with KMotionCNC.

Features of the example include:

• Saves/restores Tool Currently in Spindle in KFLOP's memory, on disk, or prompts Operator
• Error handling - any detected error display message window, the ripples back error codes to Halt GCode and exit
• Verifies Valid Tool Slot numbers 1-4

Note: the line shown below in the C Program defines which persist variable the program expects KMotionCNC to place the Tool Slot number to load.  The M6 command in KMotionCNC Tool Setup should be configured with the same Var Parameter to match.

define TOOL_VAR 9          // Tool changer desired new tool Var

Code : Linear4ToolHolders Rev 1.c

#include "KMotionDef.h"
#define TMP 10 // which spare persist to use to transfer data
#include "..\..\KflopToKMotionCNCFunctions.c"

//-----------------------------------------
//		LINEAR TOOL CHANGING
//-----------------------------------------
#define AXISX 0
#define AXISY 1
#define AXISZ 2

//---------Absolute position of tool holders
#define HOLDER_X_1 100
#define HOLDER_X_2 200
#define HOLDER_X_3 300
#define HOLDER_X_4 400
#define HOLDER_Y 1300
#define HOLDER_Z -200

// absolute position of the tool height setting plate
#define TOOL_HEIGHT_PLATE_X 50
#define TOOL_HEIGHT_PLATE_Y 50

// absolute position to move to that is permanently unobstructed, and safe to move down in Z
#define TOOL_CHANGE_SAFE_POS_X 250
#define TOOL_CHANGE_SAFE_POS_Y 1200

#define AXIS_SAFE_DISTANCE_Y 100  // distance in mm to approach tool holder
//---------

//--------- Spindle IO bits
#define CLAW_EJECT 58		// IO bit to eject tool from spindle (KONNECT OUTPUT 10)
#define SPINDLE_CLEAN 59	// IO bit to blow air out of spindle taper (KONNECT OUTPUT 11)
#define CLAW_LOOSE 1048		// IO bit to sense whether the claw has ejected (KONNECT INPUT 24)
#define TOOL_SENSE 1049		// IO bit to sense whether the a tool is in the spindle (KONNECT INPUT 24)
//---------

#define TOOL_VAR 9        	// Tool changer desired new tool Var

// Tool changer Last tool loaded is saved globally in this Var
#define LAST_TOOL_VAR 8   	//  -1=Spindle empty, 0=unknown, 1-4 Tool Slot loaded into Spindle
#define TOOL_DISK_FILE "c:\\Temp\\ToolChangerData.txt"


#define CLAMP_TIME 1.0    	// seconds to wait for the clamp/unclamp
#define TOOL_HEIGHT_BIT	1055	//bit to read tool height plate (KONNECT INPUT 31)

#define SAFE_HEIGHT_Z 100   // relative distance in mm to move to clear the top of the tool taper
#define TOOL_RETRACT_SPEED_Z 5.0	//speed in mm/second to move spindle up after tool has been ejected

#define SlowSpeed 10.0 //mm/sec

#define CNT_PER_MM_X 800.0
#define CNT_PER_MM_Y 800.0
#define CNT_PER_MM_Z 800.0

// function prototypes
int DoToolChange(int ToolSlot);
int GetCurrentTool(int *tool);
int SaveCurrentTool(int tool);
BOOL ToolNumberValid(int tool);
float ToolPositionX(int tool);
int MoveXY(float x, float y, float Speed);
int MoveZ(float z, float Speed);
int UnloadTool(int CurrentTool);
int LoadNewTool(int Tool);
int EjectTool(void);



main()
{
	int ToolSlot = persist.UserData[TOOL_VAR];  // Requested tool to load (value stored an integer)

	if (DoToolChange(ToolSlot))  // perform Tool Change
	{
		// error, Halt Job
		DoPC(PC_COMM_HALT);
	}
}

// Perform Tool Change.  Return 0=Success, 1=Failure
int DoToolChange(int ToolSlot)
{
	int CurrentTool;

	if (GetCurrentTool(&CurrentTool)) return 1;  //  -1=Spindle empty, 0=unknown, 1-4 Tool Slot loaded into Spindle

	printf("Load Tool Slot %d requested, Current Tool %d\n",ToolSlot, CurrentTool);

	if (!ToolNumberValid(ToolSlot))  // check if invalid
	{
		char s[80];
		sprintf(s,"Invalid Tool Change Number %d\n",ToolSlot);
		printf(s);
		MsgBox(s, MB_ICONHAND | MB_OK);
		return 1;
	}

	if (CurrentTool!=-1) // is there a tool in the Spindle??
		if (UnloadTool(CurrentTool)) return 1;  // yes, unload it

	// Now Spindle is empty, load requested tool
	if (LoadNewTool(ToolSlot)) return 1;

	SaveCurrentTool(ToolSlot);  // save the one that has been loaded
	return 0;  // success
}


// - Load new Tool (Spindle must be empty)
int LoadNewTool(int Tool)
{
	// - Move to position of requested tool
	// - Rapid move to absolute position of new tool only in X and Y
	if (MoveXY(ToolPositionX(Tool),HOLDER_Y,SlowSpeed)) return 1;

	// - Move to tool Z position at TOOL_RETRACT_SPEED_Z
	if (MoveZ(HOLDER_Z,SlowSpeed)) return 1;

	// - Engage new tool
	// - CLAW_EJECT and SPINDLE_CLEAN bits are currently high from tool removal operation
	// - Turn off CLAW_EJECT and SPINDLE_CLEAN bits to engage tool
	ClearBit(CLAW_EJECT);
	ClearBit(SPINDLE_CLEAN);

	// - Wait for time in seconds defined by CLAMP_TIME
	Delay_sec(CLAMP_TIME);

	// - Check to see if CLAW_LOOSE and TOOL_SENSE are high; if either are not,
	//		something has gone wrong; halt everything and display message indicating failure
	// - Tool has been engaged
	if (!ReadBit(CLAW_LOOSE))
	{
		printf("Claw Still Loose Error\n");
		MsgBox("Claw Still Loose Error\n", MB_ICONHAND | MB_OK);
		return 1;
	}
	if (!ReadBit(TOOL_SENSE))
	{
		printf("Tool Sense Error\n");
		MsgBox("Tool Sense Error\n", MB_ICONHAND | MB_OK);
		return 1;
	}

	// - Leave tool holder by moving Y axis by the negative value of Y_AXIS_SAFE_DISTANCE
	// - Move to position of requested tool
	// - Rapid move to absolute position of new tool only in X and Y
	if (MoveXY(ToolPositionX(Tool),HOLDER_Y+AXIS_SAFE_DISTANCE_Y,SlowSpeed)) return 1;

	// - Rapid to Z home
	if (MoveZ(0.0,SlowSpeed)) return 1;

	return 0; //success
}


// - Remove tool in spindle by going to holder of current tool
int UnloadTool(int CurrentTool)
{
	// - Rapid to Z Home to clear any work that may be on the table
	if (MoveZ(0.0,SlowSpeed)) return 1;

	// - Rapid to TOOL_CHANGE_SAFE_POS to execute a safe negative Z move
	if (MoveXY(TOOL_CHANGE_SAFE_POS_X,TOOL_CHANGE_SAFE_POS_Y,SlowSpeed)) return 1;

	// - Approach tool holder by matching Z height of tool flange currently in spindle with tool holder                            claw
	if (MoveZ(HOLDER_Z,SlowSpeed)) return 1;

	// - After matching height above, approach tool holder by moving to holder X position
	if (MoveXY(ToolPositionX(CurrentTool),TOOL_CHANGE_SAFE_POS_Y,SlowSpeed)) return 1;

	// - After matching X position, match tool Y position
	if (MoveXY(ToolPositionX(CurrentTool),HOLDER_Y,SlowSpeed)) return 1;

	// - Move only in Y position until current position matches tool holder position (maybe disable X)                          axis?)
	// ???

	// - Eject tool
	if (EjectTool()) return 1;


	return 0; //success
}


// - Eject tool
int EjectTool(void)
{
	// - Turn on CLAW_EJECT bit to remove tool from spindle
	SetBit(CLAW_EJECT);

	// - Turn on SPINDLE_CLEAN bit to remove any debris from taper and tools
	SetBit(SPINDLE_CLEAN);

	// - Wait for time in seconds defined by CLAMP_TIME
	Delay_sec(CLAMP_TIME);

	// - Read CLAW_LOOSE bit to see whether the tool is loose, to make a safe Z move without
    //      destroying tool holder
	// - If CLAW_LOOSE bit is high, something has gone wrong;
	//		halt everything and display message indicating failure
	if (ReadBit(CLAW_LOOSE))
	{
		printf("Claw Loose Error\n");
		MsgBox("Claw Loose Error\n", MB_ICONHAND | MB_OK);
		return 1;
	}

	// - Move Z axis up at speed defined by 'Z_TOOL_RETRACT_SPEED', to Z_SAFE_HEIGHT
	if (MoveZ(HOLDER_Z+SAFE_HEIGHT_Z,TOOL_RETRACT_SPEED_Z)) return 1;

	// - Read TOOL_SENSE bit to see whether the tool has been successfully ejected from the spindle
	// - If TOOL_SENSE bit is high, something has gone wrong;
	//		halt everything and display message indicating failure
	if (ReadBit(TOOL_SENSE))
	{
		printf("Tool Sense Release Error\n");
		MsgBox("Tool Sense Release Error\n", MB_ICONHAND | MB_OK);
		return 1;
	}
	return 0; // success
}



//return x position of tool holder as a function of the tool
float ToolPositionX(int tool)
{
	return (HOLDER_X_2-HOLDER_X_1)*(tool-1) + HOLDER_X_1;
}



// Get the last loaded tool.  Parameter points to where to return tool
// First try to get from KFLOP memory
// if memory is invalid, try to read from disk
// if can't read disk then ask Operator
// returns 0 on success, 1 on fail or Operator asked to abort

int GetCurrentTool(int *ptool)
{
	int success,Answer,result,tool;
	float value;

	tool = persist.UserData[LAST_TOOL_VAR];
	success = ToolNumberValid(tool);  // check if valid

	if (!success)   // invalid after power up, try to read from PC Disk File
	{
		// Try to open file
		FILE *f=fopen(TOOL_DISK_FILE,"rt");
		if (f)  // did file open?
		{
			// read a line and convert it
			result=fscanf(f,"%d",&tool);
			fclose(f);

			if (result==1 && ToolNumberValid(tool))
			{
				printf("Read Disk File Value of %d\n",tool);
				success=TRUE; // success if one value converted
			}
		}

		if (!success) printf("Unable to open/read file:%s\n",TOOL_DISK_FILE);
	}

	if (!success)   // if still no success ask Operator
	{
		Answer = InputBox("Tool in Spindle or -1",&value);
		if (Answer)
		{
			printf("Operator Canceled\n");
			return 1;
		}
		else
		{
			tool=value;
			printf("Operator Entered Value of %d\n",tool);
		}
	}

	if (!ToolNumberValid(tool))  // check if invalid
	{
		char s[80];
		sprintf(s,"Invalid Current Tool Number %d\n",tool);
		printf(s);
		MsgBox(s, MB_ICONHAND | MB_OK);
		return 1;
	}

	printf("Current tool = %d\n",tool);
	*ptool = tool;  // return result to caller
	return 0;  //success
}

// save the tool number to KFLOP global Variable and to PC Disk file in case we loose power
int SaveCurrentTool(int tool)
{
	persist.UserData[LAST_TOOL_VAR]=tool;
	FILE *f=fopen(TOOL_DISK_FILE,"wt");
	fprintf(f,"%d\n",tool);
	fclose(f);
	return 0;
}

// check if Current Tool number Valid
// -1 = no tool loaded
// 1-4 = valid tool
BOOL ToolNumberValid(int tool)
{
	return tool == -1 || (tool>=1 && tool<=4);
}


// Move Axis XY at specified Speed and wait until complete
// return 0 = success, 1 if axis disabled
int MoveXY(float x, float y, float Speed)
{
	MoveAtVel(AXISX, x * CNT_PER_MM_X, Speed * CNT_PER_MM_X);
	MoveAtVel(AXISZ, y * CNT_PER_MM_Y, Speed * CNT_PER_MM_Y);

	while (!CheckDone(AXISX) || !CheckDone(AXISY))
	{
		if (!chan[AXISX].Enable)
		{
			printf("Error X Axis Disabled\n");
			MsgBox("Error X Axis Disabled\n", MB_ICONHAND | MB_OK);
			return 1;
		}
		if (!chan[AXISY].Enable)
		{
			printf("Error Y Axis Disabled\n");
			MsgBox("Error Y Axis Disabled\n", MB_ICONHAND | MB_OK);
			return 1;
		}
	}
	return 0;  //success
}

// Move Axis Z at specified Speed and wait until complete
// return 0 = success, 1 if axis disabled
int MoveZ(float z, float Speed)
{
	MoveAtVel(AXISZ, z * CNT_PER_MM_Z, Speed * CNT_PER_MM_Z);

	while (!CheckDone(AXISZ))
	{
		if (!chan[AXISZ].Enable)
		{
			printf("Error Z Axis Disabled\n");
			MsgBox("Error Z Axis Disabled\n", MB_ICONHAND | MB_OK);
			return 1;
		}
	}
	return 0;  //success
}

Note on Startup it might be useful to set KMotionCNC to show the last tool loaded. The code below is an example of how to format a Txxx Word string and send it as an MDI command to KMotionCNC

#include "KMotionDef.h"

#define TMP 10 // which spare persist to use to transfer data
#include "KflopToKMotionCNCFunctions.c"

#define LAST_TOOL_VAR 8     //  -1=Spindle empty, 0=unknown, 1-4 Tool Slot loaded into Spindle

main()
{
    char s[80];
    sprintf(s,"T%d",persist.UserData[LAST_TOOL_VAR]);
    MDI(s);  //send the T word
}
