idk why lathe changes

[TomKerekes]

Yes, that is exactly what KMotion.exe C Programs Screen is showing you. You can also use any text editor such as Notepad.exe to view them.

[turbothis]

ok, to start over slowly with only the spindle axis
i use the electro-craft dc-45l drives
https://www.artisantg.com/info/ElectroC ... Manual.pdf

1 i have the signal ground and VCS- run to GND on Kanalog board
2 VCS+ is run by the DAC 2 (shielded wire)
3 enables connected and run to Estop

this is the exact same set up on my mill since the beginning and works flawless for couple years

this should be no trouble right?

[turbothis]

i was going to run the scope on the DAC's to see if there is noise running the spindle drive input
i try and set DAC1 to 0 and nothing happens
in fact i cant get any DAC to = a value
it connected and running. why would i not be able to input on the console?

[TomKerekes]

Do you have an axis enabled driving DAC1?

[turbothis]

ya i think so

[turbothis]

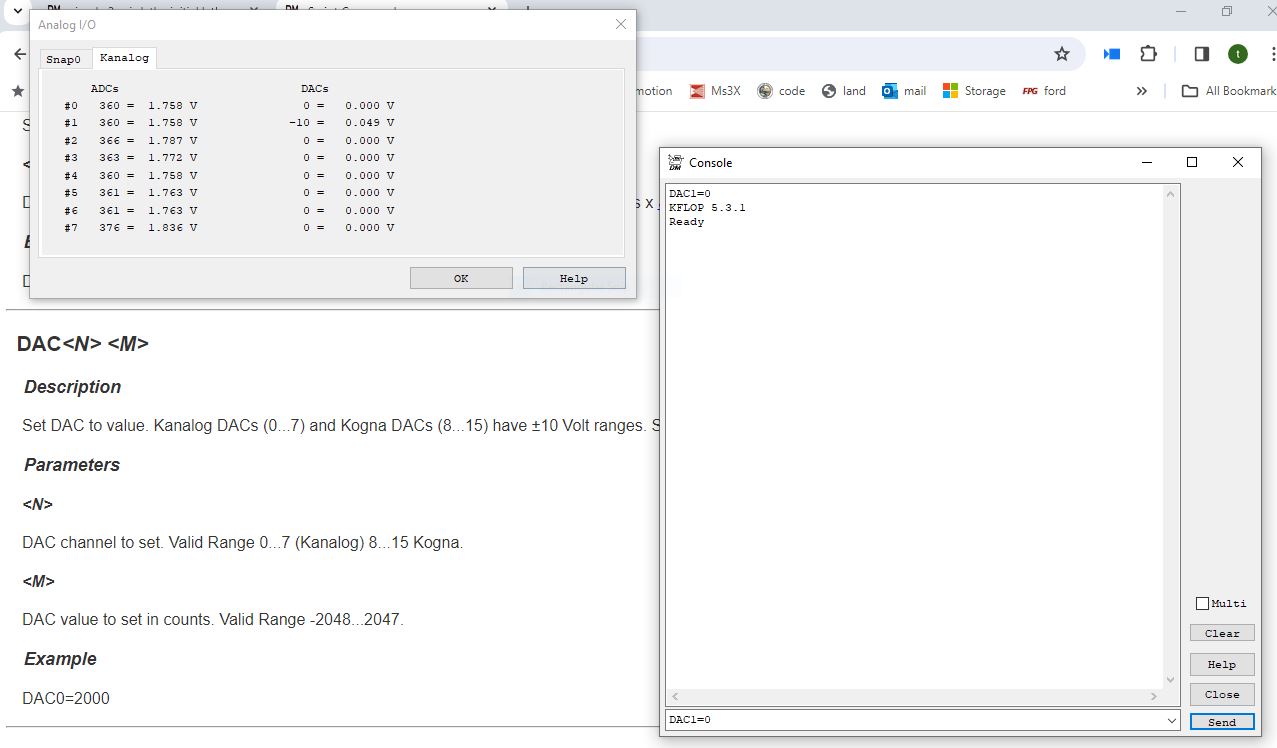

when i spindle on, i get DAC output but i measure no volts on the actual DAC out pin

[turbothis]

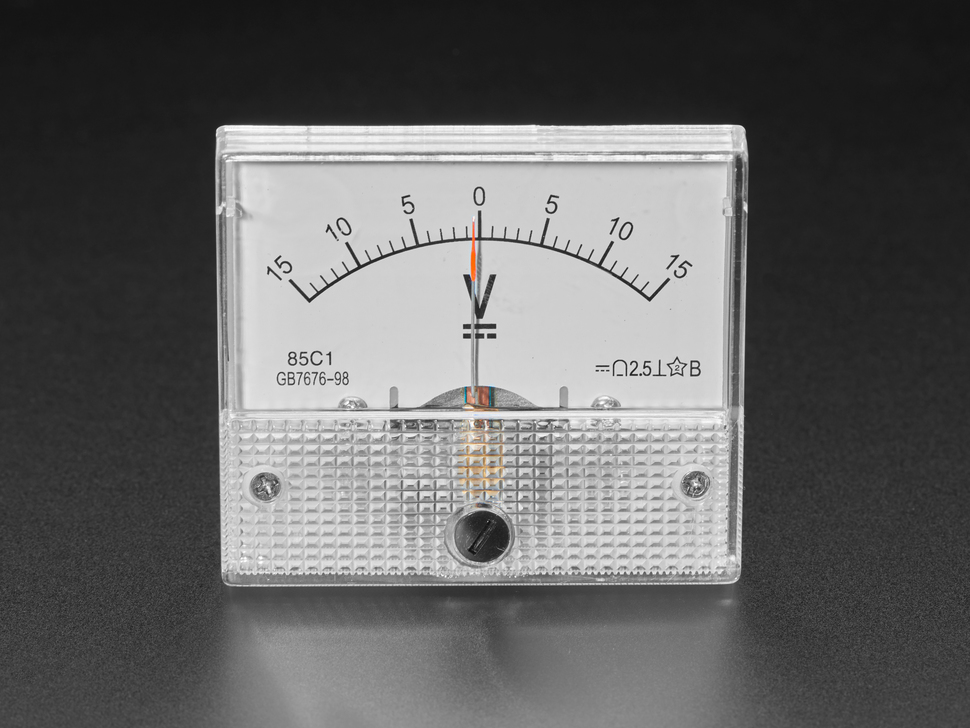

thinking about getting some of these gauges to watch things as they do/dont happen

[TomKerekes]

You didn’t show how your axes are configured. But if you have an axis writing to a DAC anything you write to it will be quickly overwritten. Disable the axis if you want to manually write values to it.

[turbothis]

Gotcha
I'll try that tomorrow
Thanks for your continuous help!

[turbothis]

is this init code good?

Code: Select all

#include "KMotionDef.h"
#include "MySpindleDefs.h"
#include "CSSJog.c"

int main() {

        // X axis

	ch0->InputMode=ENCODER_MODE;
	ch0->OutputMode=DAC_SERVO_MODE;
	ch0->Vel=106000;
	ch0->Accel=5.05005e+07;
	ch0->Jerk=5.05005e+07;
	ch0->P=4;
	ch0->I=0;
	ch0->D=20;
	ch0->FFAccel=0;
	ch0->FFVel=0;
	ch0->MaxI=200;
	ch0->MaxErr=200;
	ch0->MaxOutput=2000;
	ch0->DeadBandGain=1;
	ch0->DeadBandRange=0;
	ch0->InputChan0=0;
	ch0->InputChan1=0;
	ch0->OutputChan0=0;
	ch0->OutputChan1=0;
	ch0->MasterAxis=-1;
	ch0->LimitSwitchOptions=0x120;
	ch0->LimitSwitchNegBit=0;
	ch0->LimitSwitchPosBit=0;
	ch0->SoftLimitPos=1e+09;
	ch0->SoftLimitNeg=-1e+09;
	ch0->InputGain0=1;
	ch0->InputGain1=1;
	ch0->InputOffset0=0;
	ch0->InputOffset1=0;
	ch0->OutputGain=1;
	ch0->OutputOffset=0;
	ch0->SlaveGain=1;
	ch0->BacklashMode=BACKLASH_OFF;
	ch0->BacklashAmount=0;
	ch0->BacklashRate=0;
	ch0->invDistPerCycle=1;
	ch0->Lead=0;
	ch0->MaxFollowingError=8000;
	ch0->StepperAmplitude=250;

	ch0->iir[0].B0=1;
	ch0->iir[0].B1=0;
	ch0->iir[0].B2=0;
	ch0->iir[0].A1=0;
	ch0->iir[0].A2=0;

	ch0->iir[1].B0=1;
	ch0->iir[1].B1=0;
	ch0->iir[1].B2=0;
	ch0->iir[1].A1=0;
	ch0->iir[1].A2=0;

	ch0->iir[2].B0=1;
	ch0->iir[2].B1=0;
	ch0->iir[2].B2=0;
	ch0->iir[2].A1=0;
	ch0->iir[2].A2=0;

        // Z axis

	ch1->InputMode=ENCODER_MODE;
	ch1->OutputMode=DAC_SERVO_MODE;
	ch1->Vel=85000;
	ch1->Accel=4.5005e+06;
	ch1->Jerk=4.5005e+06;
	ch1->P=5;
	ch1->I=0;
	ch1->D=10;
	ch1->FFAccel=0;
	ch1->FFVel=0;
	ch1->MaxI=200;
	ch1->MaxErr=200;
	ch1->MaxOutput=2000;
	ch1->DeadBandGain=1;
	ch1->DeadBandRange=0;
	ch1->InputChan0=1;
	ch1->InputChan1=0;
	ch1->OutputChan0=1;
	ch1->OutputChan1=0;
	ch1->MasterAxis=-1;
	ch1->LimitSwitchOptions=0x120;
	ch1->LimitSwitchNegBit=0;
	ch1->LimitSwitchPosBit=0;
	ch1->SoftLimitPos=1e+09;
	ch1->SoftLimitNeg=-1e+09;
	ch1->InputGain0=1;
	ch1->InputGain1=1;
	ch1->InputOffset0=0;
	ch1->InputOffset1=0;
	ch1->OutputGain=1;
	ch1->OutputOffset=0;
	ch1->SlaveGain=1;
	ch1->BacklashMode=BACKLASH_OFF;
	ch1->BacklashAmount=0;
	ch1->BacklashRate=0;
	ch1->invDistPerCycle=1;
	ch1->Lead=0;
	ch1->MaxFollowingError=8000;
	ch1->StepperAmplitude=250;

	ch1->iir[0].B0=1;
	ch1->iir[0].B1=0;
	ch1->iir[0].B2=0;
	ch1->iir[0].A1=0;
	ch1->iir[0].A2=0;

	ch1->iir[1].B0=1;
	ch1->iir[1].B1=0;
	ch1->iir[1].B2=0;
	ch1->iir[1].A1=0;
	ch1->iir[1].A2=0;

	ch1->iir[2].B0=1;
	ch1->iir[2].B1=0;
	ch1->iir[2].B2=0;
	ch1->iir[2].A1=0;
	ch1->iir[2].A2=0;


	    //  spindle

	ch2->InputMode=ENCODER_MODE;
	ch2->OutputMode=DAC_SERVO_MODE;
	ch2->Vel=10000;
	ch2->Accel=500000;
	ch2->Jerk=500000;
	ch2->P=5;
	ch2->I=0;
	ch2->D=20;
	ch2->FFAccel=0;
	ch2->FFVel=0;
	ch2->MaxI=200;
	ch2->MaxErr=1e+06;
	ch2->MaxOutput=2000;
	ch2->DeadBandGain=1;
	ch2->DeadBandRange=0;
	ch2->InputChan0=2;
	ch2->InputChan1=0;
	ch2->OutputChan0=3;
	ch2->OutputChan1=0;
	ch2->MasterAxis=-1;
	ch2->LimitSwitchOptions=0x120;
	ch2->LimitSwitchNegBit=0;
	ch2->LimitSwitchPosBit=0;
	ch2->SoftLimitPos=1e+30;
	ch2->SoftLimitNeg=-1e+30;
	ch2->InputGain0=-1;
	ch2->InputGain1=1;
	ch2->InputOffset0=0;
	ch2->InputOffset1=0;
	ch2->OutputGain=1;
	ch2->OutputOffset=0;
	ch2->SlaveGain=1;
	ch2->BacklashMode=BACKLASH_OFF;
	ch2->BacklashAmount=0;
	ch2->BacklashRate=0;
	ch2->invDistPerCycle=1;
	ch2->Lead=0;
	ch2->MaxFollowingError=1000000;
	ch2->StepperAmplitude=20;

	ch2->iir[0].B0=1;
	ch2->iir[0].B1=0;
	ch2->iir[0].B2=0;
	ch2->iir[0].A1=0;
	ch2->iir[0].A2=0;

	ch2->iir[1].B0=1;
	ch2->iir[1].B1=0;
	ch2->iir[1].B2=0;
	ch2->iir[1].A1=0;
	ch2->iir[1].A2=0;

	ch2->iir[2].B0=1;
	ch2->iir[2].B1=0;
	ch2->iir[2].B2=0;
	ch2->iir[2].A1=0;
	ch2->iir[2].A2=0;


	EnableAxis(0);
    EnableAxis(1);
    EnableAxis(2);

	DefineCoordSystem(0,-1,1,-1);
    }


    main()
{
	for (;;)
	{
		WaitNextTimeSlice();
		ServiceCSS();
	}
}

int   *css_mode = &persist.UserData[PC_COMM_CSS_MODE];			// Mode 1=Normal RPM mode. 2=CSS
float *css_xoff = &persist.UserData[PC_COMM_CSS_X_OFFSET];		// X axis counts for Radius zero
float *css_xfactor = &persist.UserData[PC_COMM_CSS_X_FACTOR];	// X axis factor to convert counts to inches
float *css_s = &persist.UserData[PC_COMM_CSS_S];				// S speed setting in inches/sec
float *css_max_rpm = &persist.UserData[PC_COMM_CSS_MAX_RPM];	// Limit max RPM to this value as Radius approaches zero

double css_T=0;  // update only every so often
#define CSS_UPDATE_DT 0.05

void ServiceCSS(void)
{
	float rpm;
	double T=Time_sec();

	if (*css_mode == 2 && T > css_T) // check if we are in CSS mode and it is time to update
	{
		css_T=T+CSS_UPDATE_DT;  // determine next time to update

		// convert axis position to distance from center in inches
		float radius = fast_fabs((chan[CS0_axis_x].Dest - *css_xoff) * *css_xfactor);

		if (radius > 0.0f)
			rpm = *css_s / (radius * (TWO_PI_F/60.0f));
		else
			rpm = *css_max_rpm;

		if (rpm > *css_max_rpm) rpm = *css_max_rpm;

		if (persist.UserData[STATEVAR]!=0)  // if spindle is already on, ramp to new speed
		{
			if (USE_POS_NEG_VOLTAGE)
				Jog(SPINDLEAXIS,rpm * FACTOR * persist.UserData[STATEVAR]);
			else
				Jog(SPINDLEAXIS,rpm * FACTOR);
		}

//		printf("xoff=%f radius= %f xfactor=%f s=%f(ips) maxrpm=%f rpm=%f\n",*css_xoff,radius,*css_xfactor,*css_s,*css_max_rpm,rpm);
	}
}
