threading macro help

[turbothis]

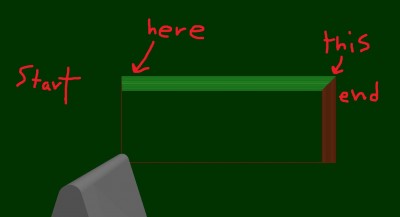

chatbots got me mostly there but i cant get the Z increment on the start side of the cut

Code: Select all

( threading starts at Z zero )
G20 G18
G00 X1.0 Z0.0  ( Clear plane )
M04 S500       ( Set spindle speed to 500 RPM )
G04 P3         ( Dwell for 3 seconds )

#1=[0.0025]    ( Depth of Cut  )
#2=[0.040]     ( Total depth of thread )
#3=[0.560]     ( Length of thread / start position )
#4=[0.0394]    ( Thread pitch / per rotation )
#5=[0.0025]    ( Increment for Z-axis per pass )

#9=0           ( DOC so far )
#10=0          ( Cumulative Z-axis movement )

M100

M98 P100 L[#2/#1]  ( Number of passes = total depth / DOC )
M2

O100
#9=[#9+#1]       ( Increment DOC )
#10=[#10+#5]     ( Increment cumulative Z-axis movement )
X-#9
G32 Z[#3+#10] F#4
G0 X0.200
Z0.0
M99

[TomKerekes]

I think at the end instead of always moving Z back to 0 move to #10

[turbothis]

excellent!

Code: Select all

( threading starts at Z zero )
G20 G18
G00 X0.5 Z0.0  ( Clear plane )
M04 S500       ( Set spindle speed to 500 RPM )
G04 P3         ( Dwell for 3 seconds )

#1=[0.0025]    ( Depth of Cut  )
#2=[0.040]     ( Total depth of thread )
#3=[0.560]     ( Length of thread / start position )
#4=[0.0394]    ( Thread pitch / per rotation )
#5=[-0.0014]   ( Increment for Z-axis per pass )


#9=0           ( DOC so far )
#10=0          ( Cumulative Z-axis movement )

M100

M98 P100 L[#2/#1]  ( Number of passes = total depth / DOC )
M2





O100
X-#9
#9=[#9+#1]       ( Increment DOC )
#10=[#10+#5]     ( Increment cumulative Z-axis movement )
G32 Z#3 F#4
G0 X0.200
Z-#10            ( Increment cumulative Z-axis movement )
M99

[turbothis]

i had chatbot modify it further to make it more user friendly in that an angle can be directly input and the macro would do the math but i think it is too much as it does not work

Code: Select all

( threading starts at Z zero )
G20 G18
G00 X0.5 Z0.0  ( Clear plane )
M04 S500       ( Set spindle speed to 500 RPM )
G04 P3         ( Dwell for 3 seconds )

#1=[0.0025]    ( Depth of Cut )
#2=[0.040]     ( Total depth of thread )
#3=[0.560]     ( Length of thread / start position )
#4=[0.0394]    ( Thread pitch / per rotation )
#6=[29]        ( Desired angle in degrees )

#9=0           ( DOC so far )
#10=0          ( Cumulative Z-axis movement )

( Calculate the Z increment based on the angle and DOC )
#5=[tan[#6 * 0.0174533] * #1]  ( Increment for Z-axis per pass )

M100

M98 P100 L[#2/#1]  ( Number of passes = total depth / DOC )
M2

O100
X-#9
#9=[#9+#1]       ( Increment DOC )
#10=[#10+#5]     ( Increment cumulative Z-axis movement )
G32 Z#3 F#4
G0 X0.200
Z-#10            ( Increment cumulative Z-axis movement )
M99

[TomKerekes]

GCode trigonometric function parameters are in degrees not radians.

[turbothis]

i figured there would be something like this way over my head!

[TomKerekes]

Just remove the * 0.0174533 (PI/180) which is converting from degrees to radians

[turbothis]

ok
what is the (PI/180) ?

[Moray]

ok
what is the (PI/180) ?

Pi/180 = 0.0174533
It's how you convert between Degrees and Radians.

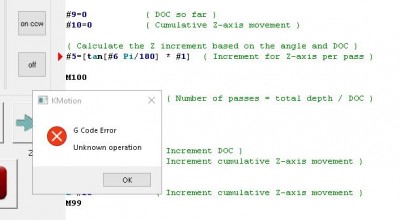

[turbothis]

oh boy i made it angry again
