Viewer color

[Tarasevih]

Hi Tom.
Can I somehow change the background color of the viewer?
I want to make it black instead of green.

Regards,
Taras.

[TomKerekes]

Hi Taras,

Only if you edit the source code and recompile KMotionCNC.

[Tarasevih]

I'm ready to try. It is in this library - BuildAllLibs.sln ?
Tell me where please.
visual studio 2015 already and installed and include MFC option.

Regards,
Taras.

[TomKerekes]

No KMotionCNC is an Application Example that uses the Libraries. Open BuildExamples.sln. See Also.

You would change this:

Code: Select all

	// Colors
	m_ClearColorRed   = 0.0f;
	m_ClearColorGreen = 0.2f;
	m_ClearColorBlue  = 0.0f;

in openglCTL.cpp

HTH

[Tarasevih]

Hi Tom.

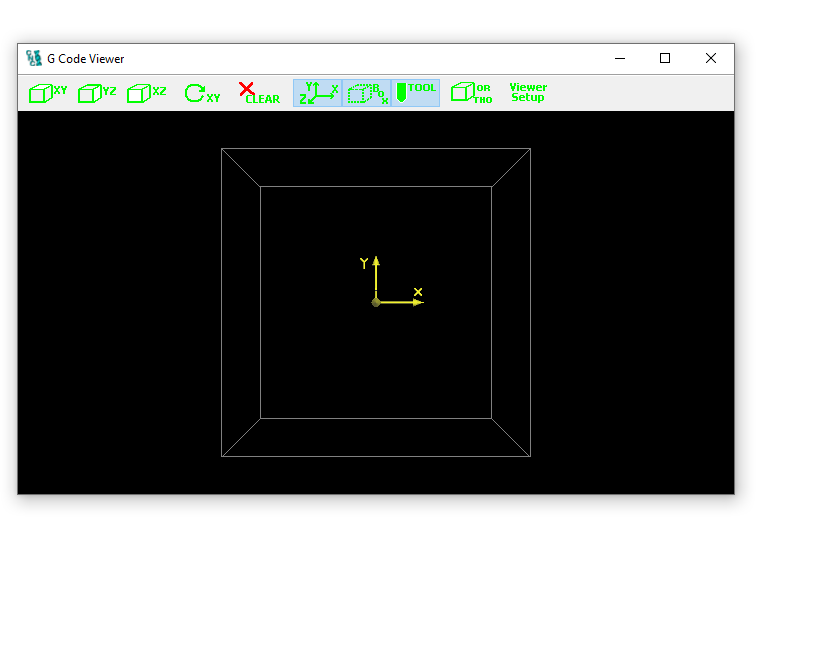

Thank you Tom! I got it all.
I would like to know where you can change the colors of the current position of the axes?

Regards,
Taras.

[Tarasevih]

I mean yellow, green, white, orange and blue colors showing the current state of the axes.

Thank you.

[TomKerekes]

See

Code: Select all

void CKMotionCNCDlg::SetBigValueColor(CDisplay *Disp,int axis, bool KMotionPresent, bool DisplayedEnc)
{
	if (m_Simulate)
		Disp->SetTextColor(0xFFFFFF);
	else if (KMotionPresent && (MainStatus.Enables & (1<<CS_axis[axis])) && CS_axis[axis] >= 0)
	{
		if (m_ShowMach)
			Disp->SetTextColor(0x0080FF);
		else
			if (DisplayedEnc)
				Disp->SetTextColor(0xFFC000);
			else
				Disp->SetTextColor(0x00FF00);
	}
	else
		Disp->SetTextColor(0x00FFFF);
}

[Tarasevih]

Hi Tom.
Thank you Tom! I got it all.
I'm sorry for distracting you.I could not find where the yellow color of the axes is set.

Regards,
Taras.

[Tarasevih]

I'm sorry , I figured it out
Disp->SetTextColor(0x00FFFF);
It's just that this code - 00FFFF is the color of the sea wave.

Thank you Tom!

Regards,
Taras.

[Tarasevih]

Hi Tom.
Is it possible to change the background bitmap of the main window depending on the color of the current position of the axes?
That is, for example, when the axes are not initialized, the background will be one when the second one is initialized.
How to access the main window background bitmap from code?

Regards,
Taras.
