RTCP 5 axis machine

[TomKerekes]

Hi Igor,

yes I know mach3 does not support rtsp. settings cited as an example. here is the official site please see there. http://leadshine.com/productdetail.aspx ... =ES-DH2306

That seems to be a different model number than you said previously. But yes that drive should work in step/direction mode.

Unblocking doesn 't work, KMotion doesn 't work.

Strange. I tried it on 2 computers without problems. Is your download the same size as shown above? Are you running any antivirus? What exactly are you doing? What happens?

[Igor]

windovs10-1809. When click on the window KmotionCNC opens and immediately collapses anti-virus only in the package windows/ tomorrow I will go to the mail to receive your fee))

[Igor]

Good afternoon Tom, I am in trouble, and I cannot apply your recommendations. Any solution to this problem?

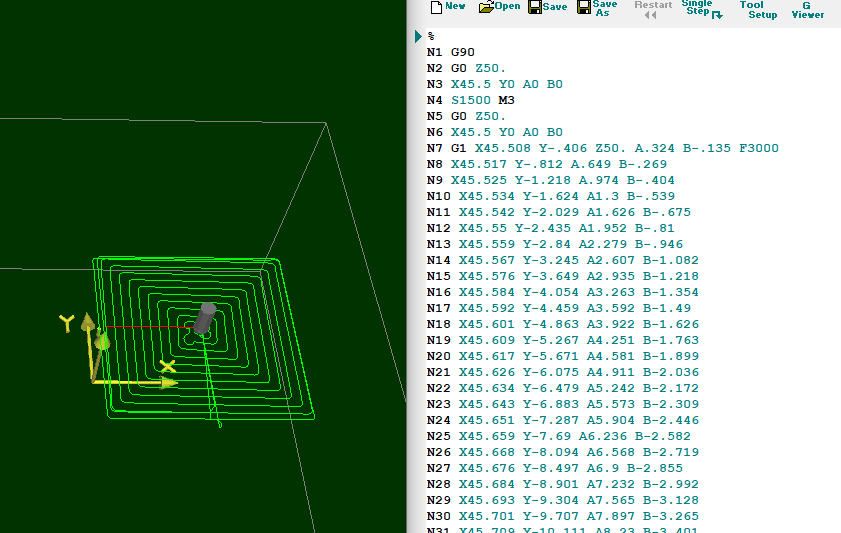

I made changes to the postprocessor for the PowerMill program, the code looks like this
. This will work fully when creating a standard profile setup? when simulating in KMotionsCNC - the trajectory is displayed correctly
%
N1 G90
N2 G0 Z50.
N3 X45.5 Y0 A0 B0
N4 S1500 M3
N5 G0 Z50.
N6 X45.5 Y0 A0 B0
N7 G1 X45.508 Y-.406 Z50. A.324 B-.135 F3000
N8 X45.517 Y-.812 A.649 B-.269
N9 X45.525 Y-1.218 A.974 B-.404
N10 X45.534 Y-1.624 A1.3 B-.539
N11 X45.542 Y-2.029 A1.626 B-.675
N12 X45.55 Y-2.435 A1.952 B-.81
N13 X45.559 Y-2.84 A2.279 B-.946
N14 X45.567 Y-3.245 A2.607 B-1.082
N15 X45.576 Y-3.649 A2.935 B-1.218
N16 X45.584 Y-4.054 A3.263 B-1.354
N17 X45.592 Y-4.459 A3.592 B-1.49
N18 X45.601 Y-4.863 A3.922 B-1.626
N19 X45.609 Y-5.267 A4.251 B-1.763
N20 X45.617 Y-5.671 A4.581 B-1.899
N21 X45.626 Y-6.075 A4.911 B-2.036
N22 X45.634 Y-6.479 A5.242 B-2.172
N23 X45.643 Y-6.883 A5.573 B-2.309
N24 X45.651 Y-7.287 A5.904 B-2.446
N25 X45.659 Y-7.69 A6.236 B-2.582
N26 X45.668 Y-8.094 A6.568 B-2.719
N27 X45.676 Y-8.497 A6.9 B-2.855
N28 X45.684 Y-8.901 A7.232 B-2.992

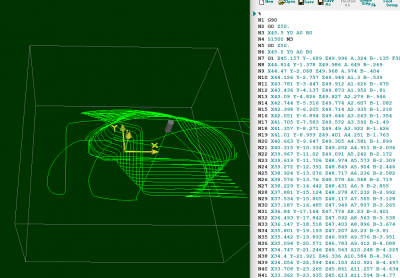

This trajectory without Activatsii RTCP - PowerMill postprocessor has a non-coretic appearance
%
N1 G90
N2 G0 Z50.
N3 X45.5 Y0 A0 B0
N4 S1500 M3
N5 G0 Z50.
N6 X45.5 Y0 A0 B0
N7 G1 X45.157 Y-.689 Z49.996 A.324 B-.135 F3000
N8 X44.814 Y-1.378 Z49.986 A.649 B-.269
N9 X44.47 Y-2.068 Z49.968 A.974 B-.404
N10 X44.126 Y-2.757 Z49.944 A1.3 B-.539
N11 X43.781 Y-3.447 Z49.912 A1.626 B-.675
N12 X43.436 Y-4.137 Z49.873 A1.952 B-.81
N13 X43.09 Y-4.826 Z49.827 A2.279 B-.946

[Igor]

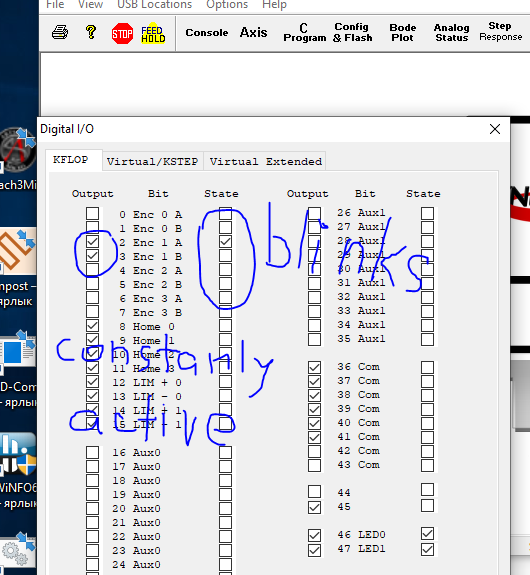

I also have another problem when turning on flashing these pinas, and in some I can 't change the value, what is the problem, the controller is not correct?

[TomKerekes]

Hi Igor,

Let's first focus on getting the Patch to work.

#1 - what Version of KMotion are you running? (Right click KMotionCNC Title - About KMotionCNC)
#2 - please attach your Kinematics.txt file

[Igor]

KMotionCNC 435b/

[TomKerekes]

Hi Igor,

Strange I tried it on 2 computers and it runs ok here.

It should actually be KMotionCNC 4.35b not KMotion 435b/

But I assume that was just a typo.

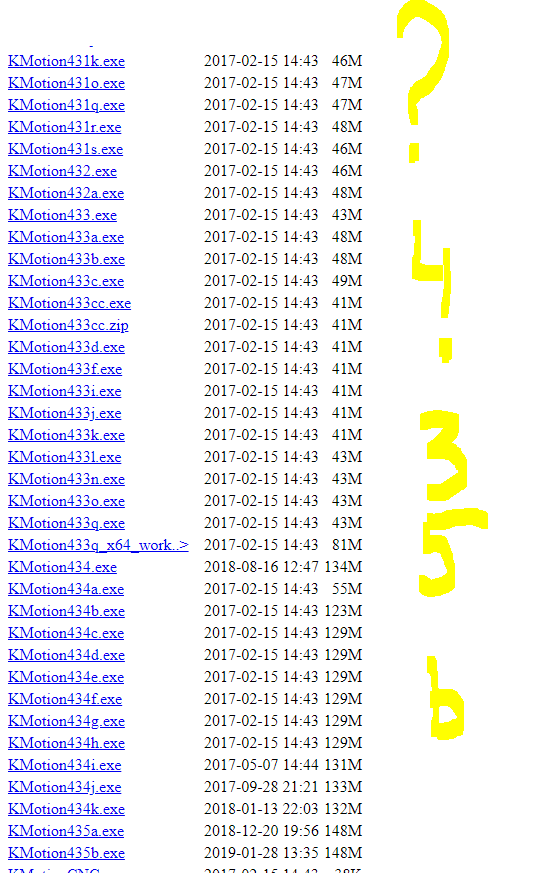

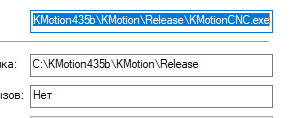

I asked previously if the size of the download was correct and I didn't see an answer. Please post the properties of the downloaded file for us to check.

You might try a fresh install of KMotionCNC 4.35b to another computer, copy in the patch, and test to see if that works.

[Igor]

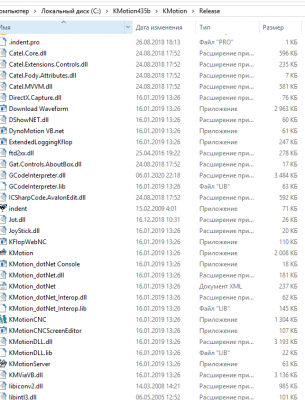

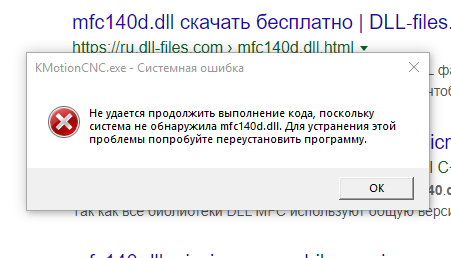

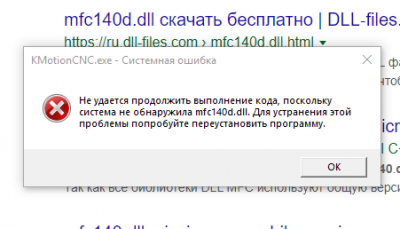

Okay, I 'll try another version now. (((( downloaded established. As soon as I add the GCodeInterpreter .dll file - the program closes at startup "

[TomKerekes]

Hi Igor,

Somehow you put a space in the filename. It should be "GCodeInterpreter.dll" not "GCodeInterpreter .dll"

I downloaded your attached GCodeInterpreter .dll took out the space and it worked for me.

[Igor]

does not work.that 's the problem?
