Looking for 16 pin , 2.54 spaced single row to match my Advanced Motion servo drive
I hate small wires. Connector header # Moldex 22-01-3167
Will need 4 assemblies about 18 in long with one end without a connector to go to the KFLOP

ANY HELP?

Hi Ryno,

It isn't clear what you are asking. But maybe you could use standard ribbon cables with a simple breakout board like this:



http://www.winford.com/products/brk2x8.php

HTH

Hi Tom
Advanced servo drive has a 16 pin 2.54 space single row male pins in the unit I have to get all my signals from there to the correct screw terminals on my KFLOP BREAKOUT BOARD
I can find the correct ribbon wire and the correct Molex connector and female PCs to tin nd crimp and make but I want to buy a pre made 16 pin single row 2.54 etc
I also don’t understand why Advanced would use a connector like this I’ve been putting this stuff off because of this

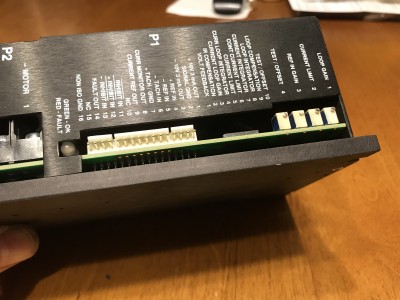

How can I attach a pic of my control?

Oops missed it being single row.

That is an Advanced Motion Control.

http://a-m-c.com You might ask them.

Otherwise you will probably need to make a cable. It shouldn't be that hard. I found these tools:

https://www.moddiy.com/products/Profess ... cQQAvD_BwE



https://www.mouser.com/ProductDetail/Mo ... xtr5pY5jFX

Thanks Tom I’ve got a magnifying glass and wire holder and crimper (I’ll have to see if I have the correct one) pin point solder etc made one and it looks like (*voy. Haywood p Oerter [ 33378 —-put whatever word you want there
That’s why I’m looking for some one to make it LOL

Should have bought the Snap amp a pair and moved on

Tom
Yes I contacted A-M-C and they didn’t help of course it’s been several years now —yes Hate that small wiring
The big stuff and 3-phase no problem

Hi Tom
Well I used modDIY to build me the cables — for 69$ they are on the way
Thanks again

Hope they come out right LOL
