A little mistake in the Kstep connectors datasheet
Moderators: TomKerekes, dynomotion
A little mistake in the Kstep connectors datasheet

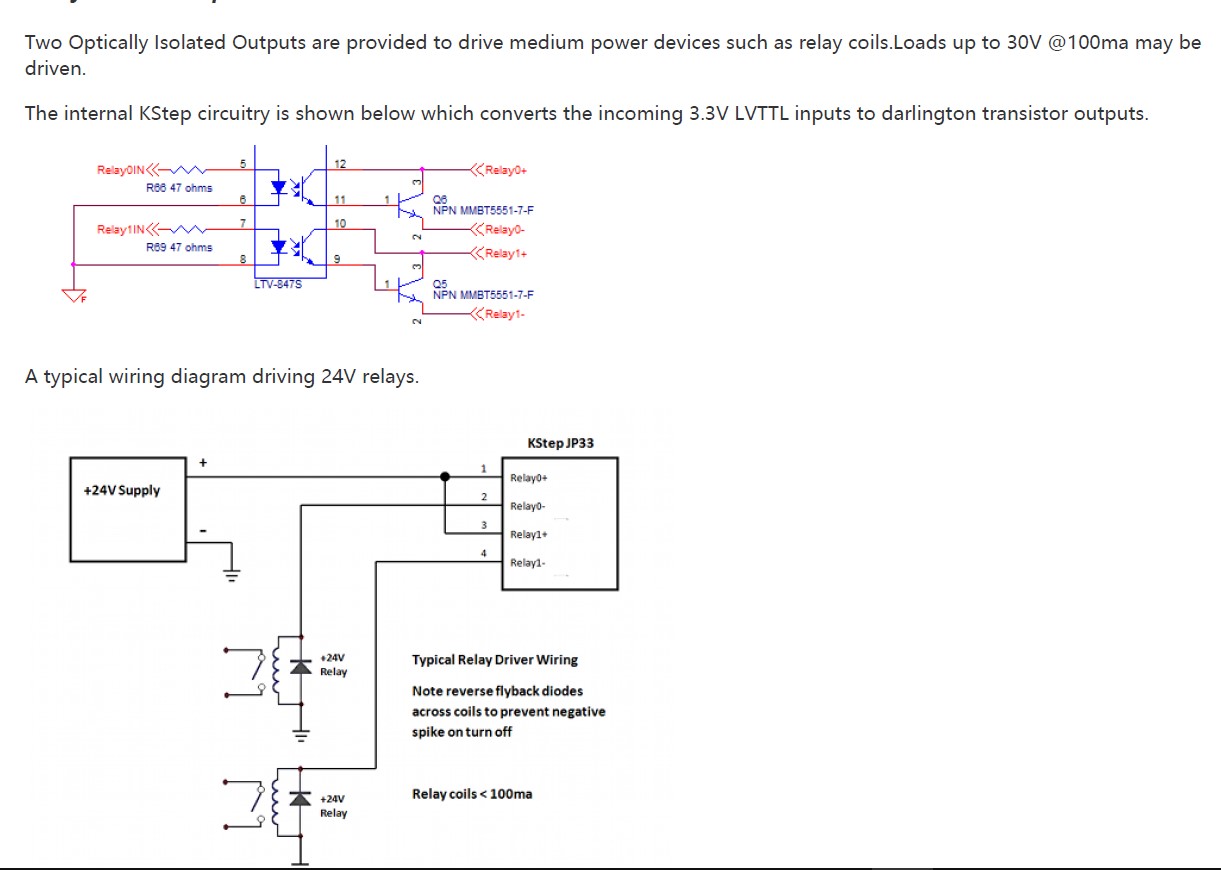

In Kstep connectors.pdf:
Yours
08-25-2020
I think the reverse flyback diodes in this picture should be placed between the relay0+ and relay0-(not between relay0- and gnd), or relay1+ and relay1-, isn't it? And this picture told us that the users should add the flyback diodes by themselves, right?Yours
08-25-2020
- TomKerekes
- Posts: 2676
- Joined: Mon Dec 04, 2017 1:49 am
Re: A little mistake in the Kstep connectors datasheet
Hi yethsts,
I think the diodes are shown correctly. The idea is to provide a local path for the current to recirculate.
See wikipedia article.
Yes they must be added by the User.
I think the diodes are shown correctly. The idea is to provide a local path for the current to recirculate.
See wikipedia article.
Yes they must be added by the User.
Regards,
Tom Kerekes
Dynomotion, Inc.
Tom Kerekes
Dynomotion, Inc.
Re: A little mistake in the Kstep connectors datasheet
Yes, you are right. I was wrong.
Yours,
yethsts
Yours,
yethsts
Re: A little mistake in the Kstep connectors datasheet
