KFLOP with linear encoder

[Igor]

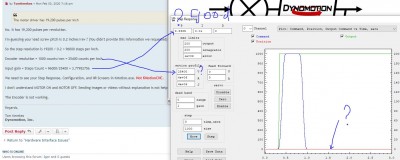

Good afternoon Tom. I follow your instructions, as far as I understand. I have already pointed out the technical data. encoder (digital bar) has a resolution (accuracy). = 0.001 mm. The motor driver has 19,200 pulses per inch (64) = 1.2` / 360 = 300 steps. What information do you provide? I did not understand your last sentence - make sure the settings are correct. show the picture with the correct data. thanks

p/s After pressing the "zero" - "move" button. Position counter starts counting (infinite) axis is STOP!

[Igor]

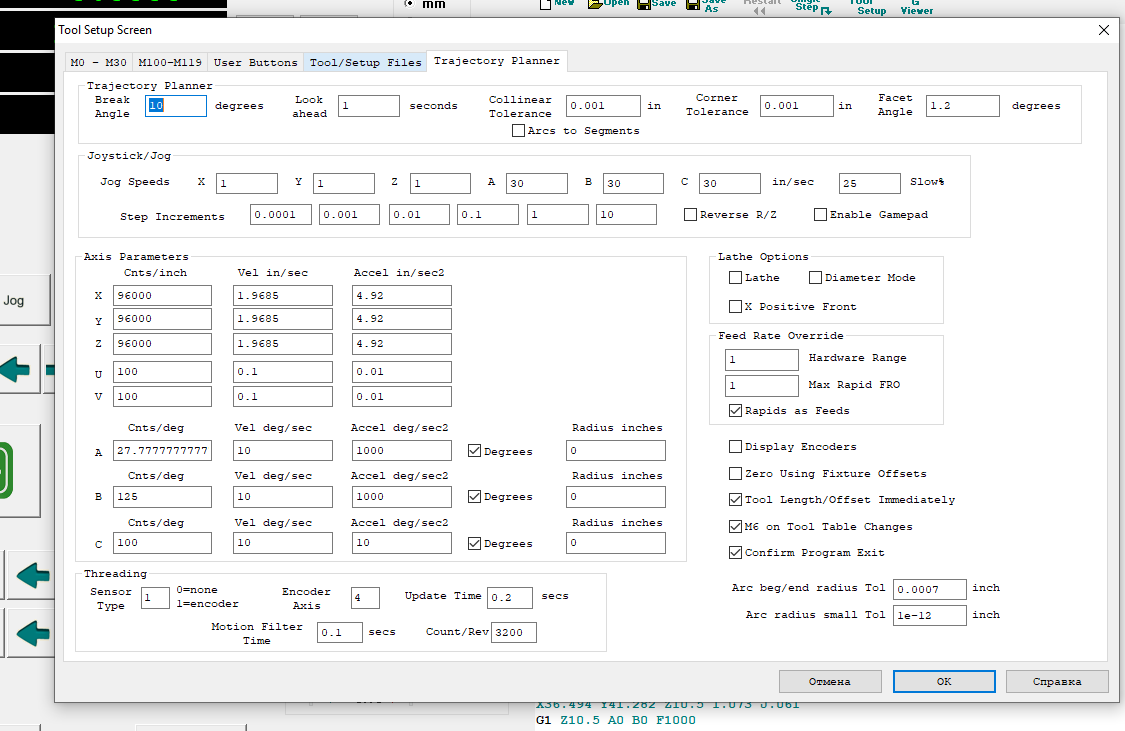

settings

[TomKerekes]

The motor driver has 19,200 pulses per inch

No. It has 19,200 pulses per revolution.

I'm guessing your lead screw pitch is 0.2 inches/rev ? (You didn't provide this information we requested)

So the step resolution is 19200 / 0.2 = 96000 steps per inch.

Encoder resolution = 1000 counts/mm = 25400 counts per inch.

Input gain = Steps/Count = 96000/25400 = ‭3.77952756

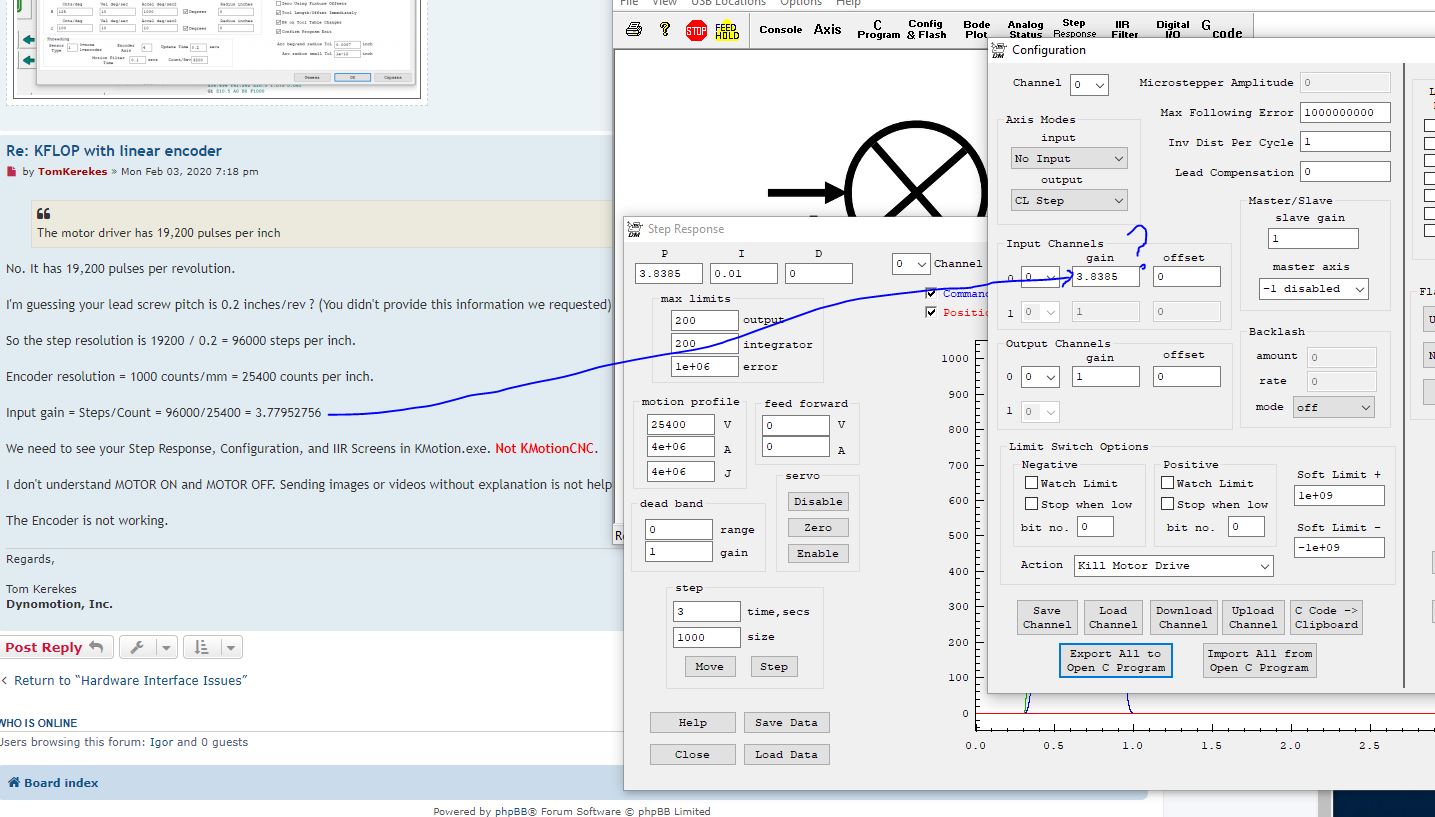

We need to see your Step Response, Configuration, and IIR Screens in KMotion.exe. Not KMotionCNC.

I don't understand MOTOR ON and MOTOR OFF. Sending images or videos without explanation is not helpful.

The Encoder is not working.

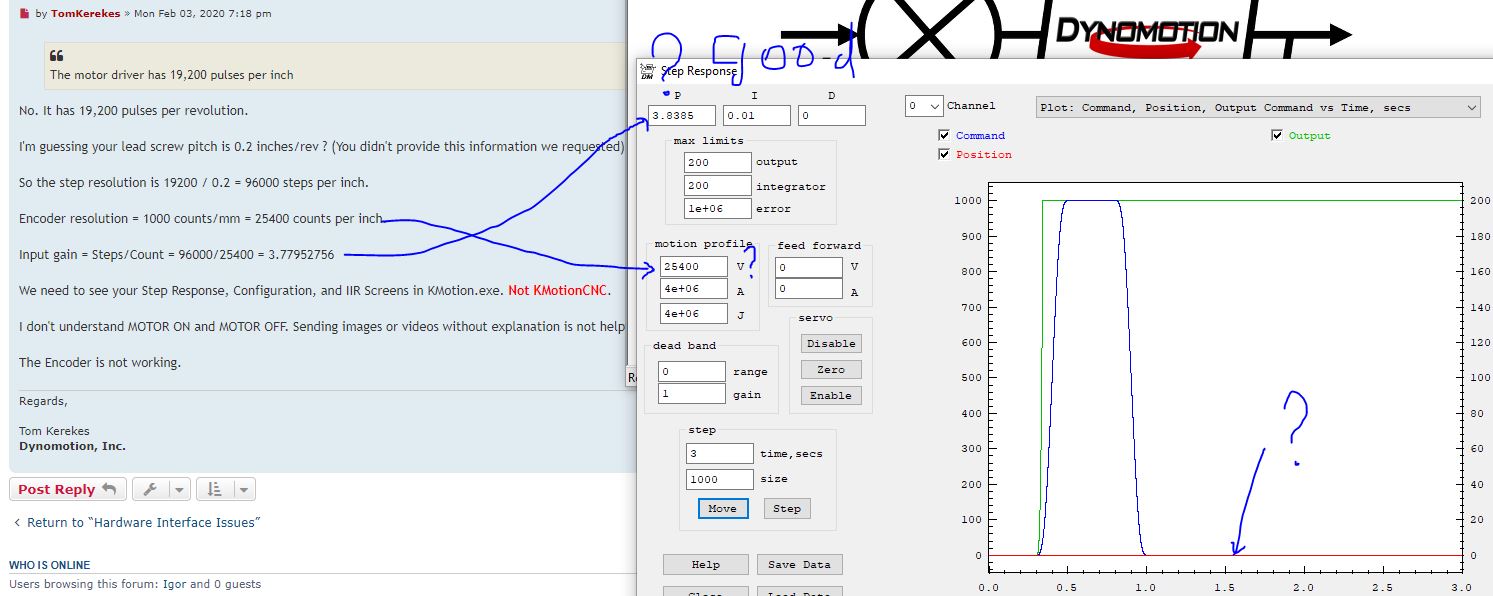

[Igor]

1-it is true, correct
2 - not true - + . has 5mm/turn. TBI C3 2005
3 - is not true. At 96000 - making a test run at a distance of 240 mm. I have actual mixing only 237.45 mm. swarms of 97500 - 240 mm
4 - I made the necessary amendments. the encoder works?

[TomKerekes]

Hi Igor,

2 - not true - + . has 5mm/turn. TBI C3 2005

Ok then:

step resolution is 19200steps/rev / (5mm/rev / 25.4mm/inch) = 97536 steps per inch.

Input gain = Steps/Count = 97536/25400 = ‭3.84

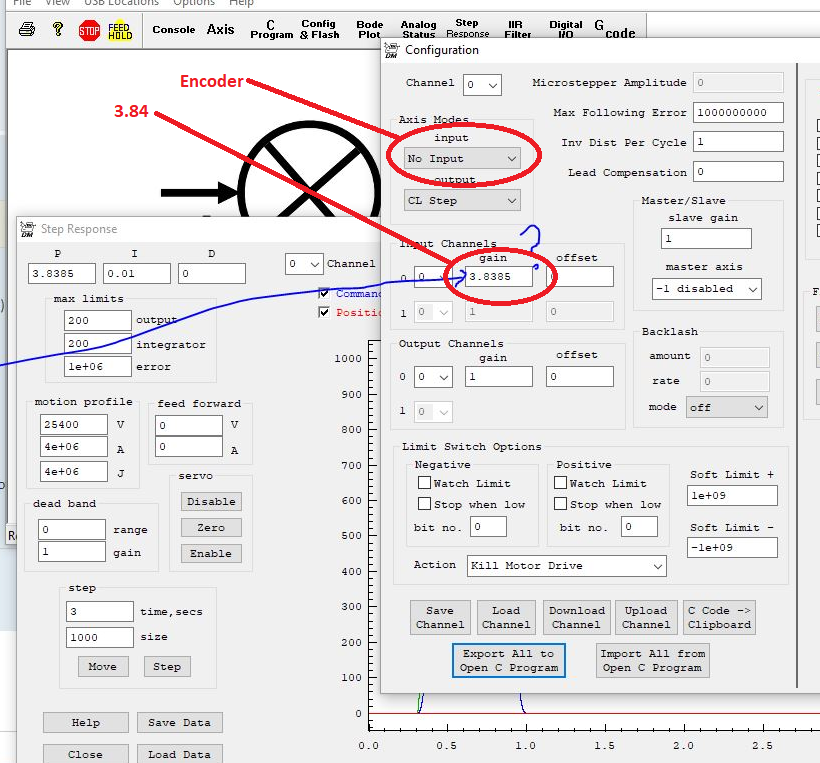

Change Input Mode to Encoder to make Encoder work:

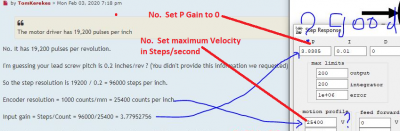

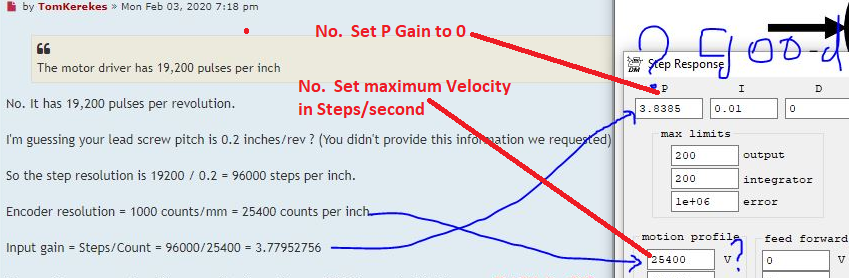

Set P Gain to Zero. Set V to Velocity to Move in Steps/Sec. For example to move 0.5 inches/sec put 97536 * 0.5 = 48768

[Igor]

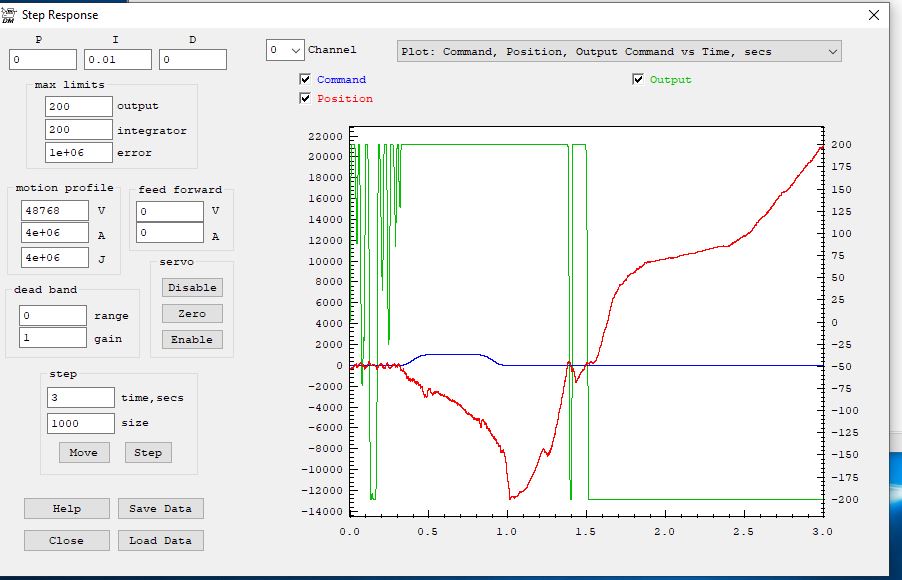

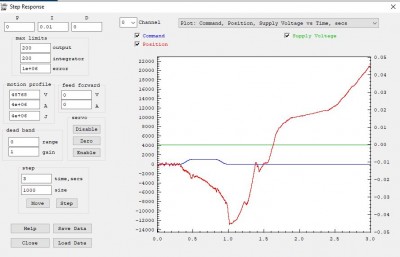

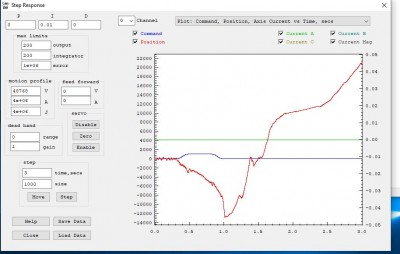

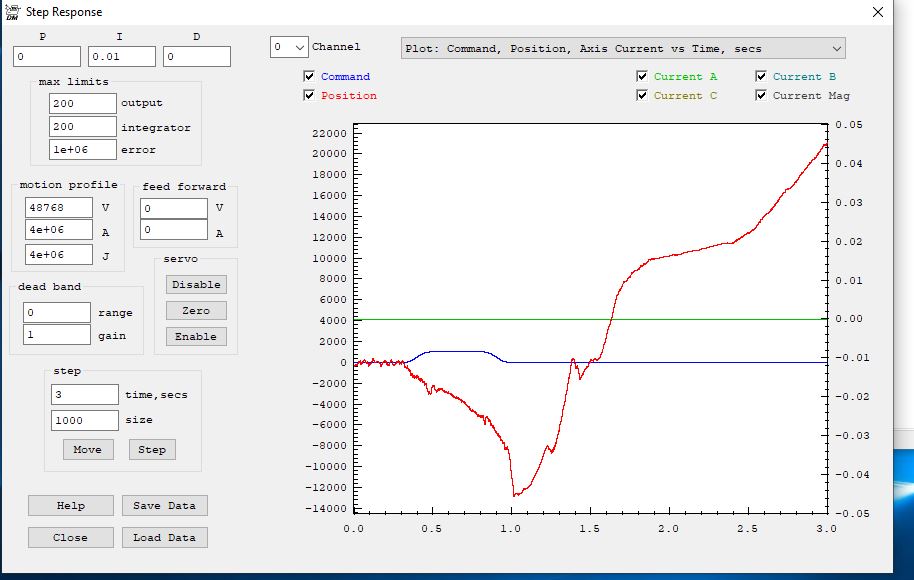

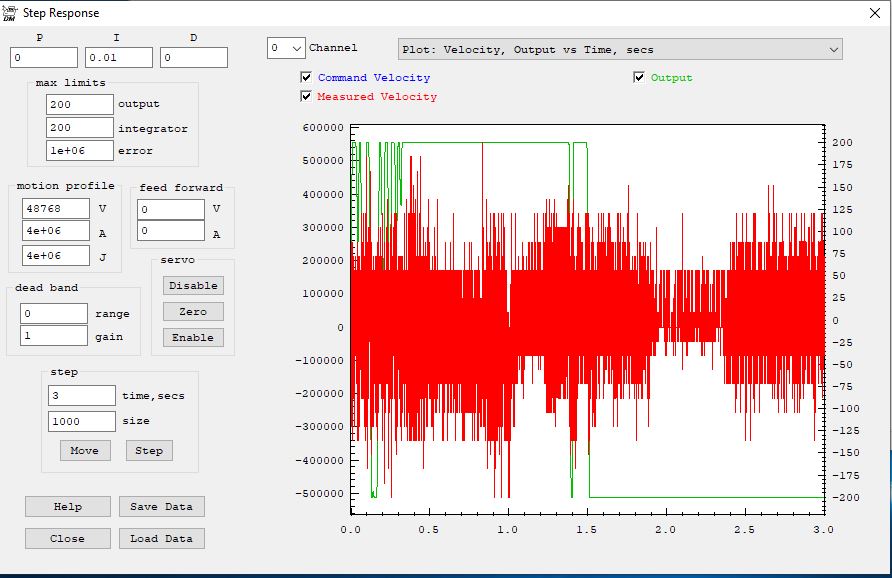

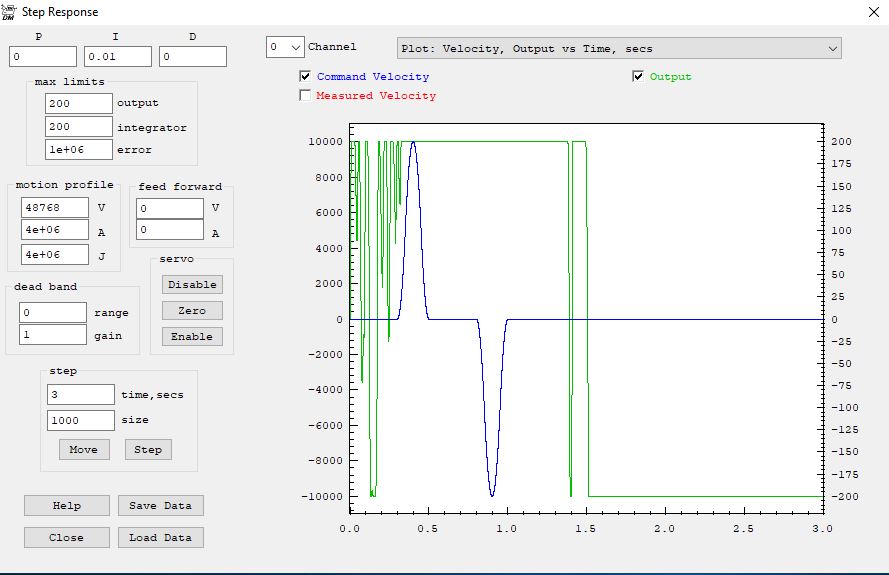

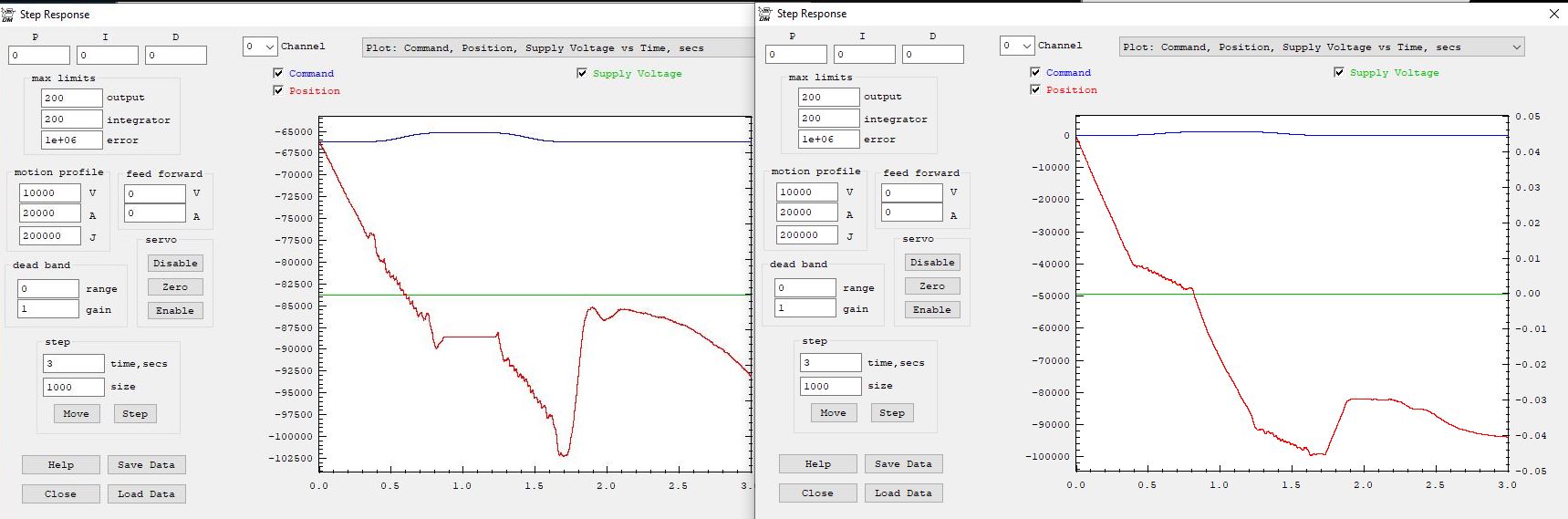

these are good diagrams

[TomKerekes]

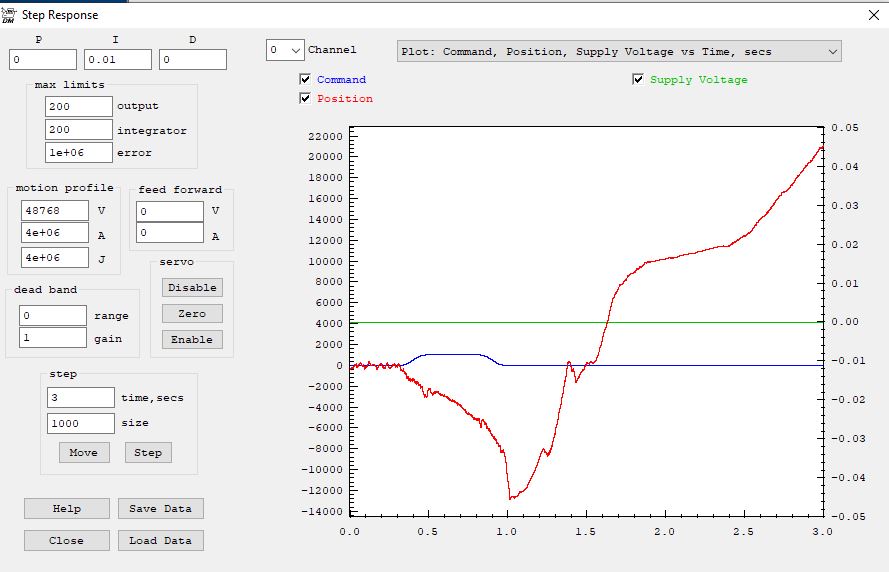

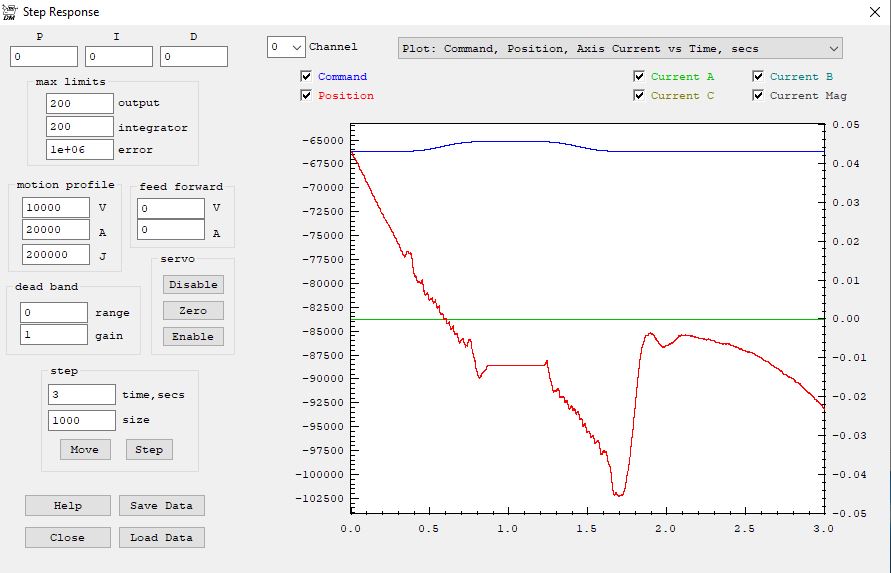

Only Plot: Command, Position, Output Command vs Time (Your drives don't have current or voltage measurements)

Encoder seems bad or picking up noise.

#1 - Set P I D to zero (no feedback)

#2 - Move slowly with low acceleration. V=10000 A=20000 J=200000

#3 - Post a Plot

#4 - describe what the motor does

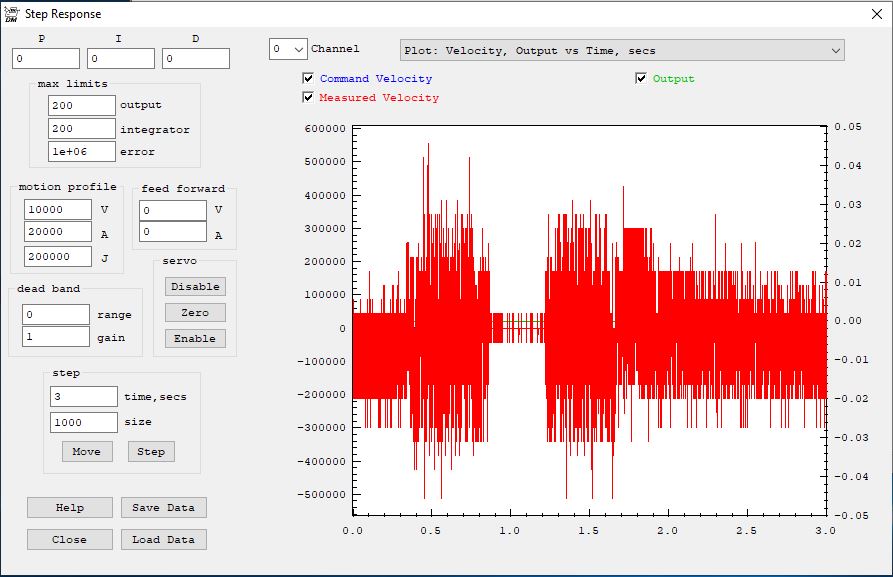

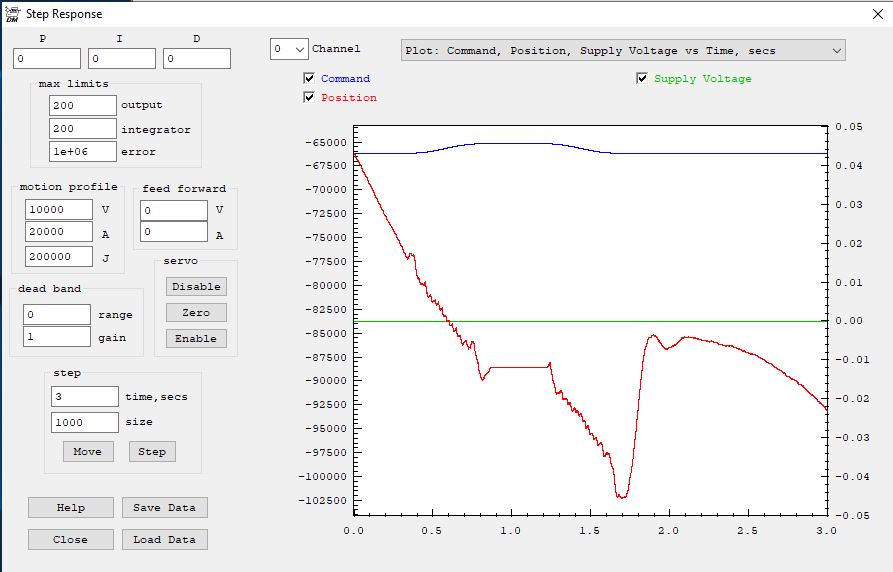

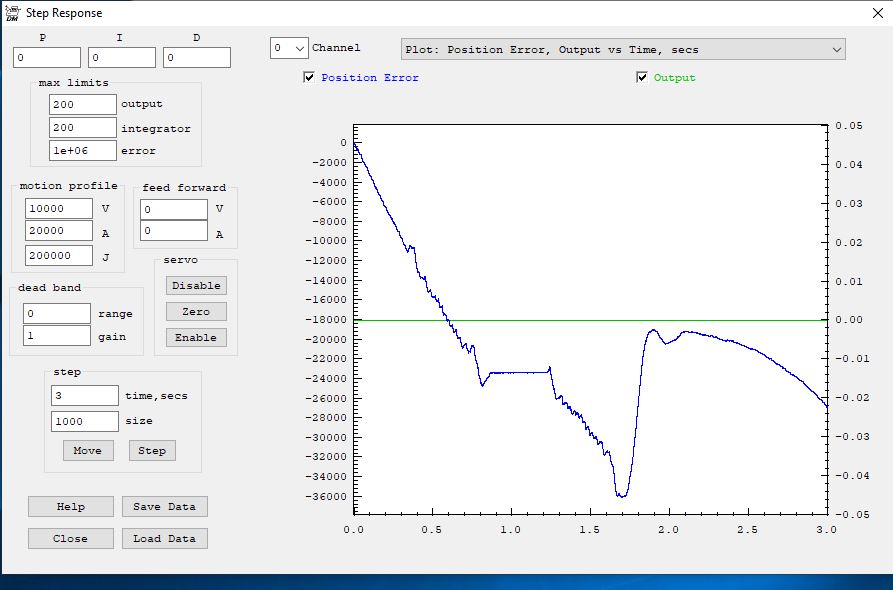

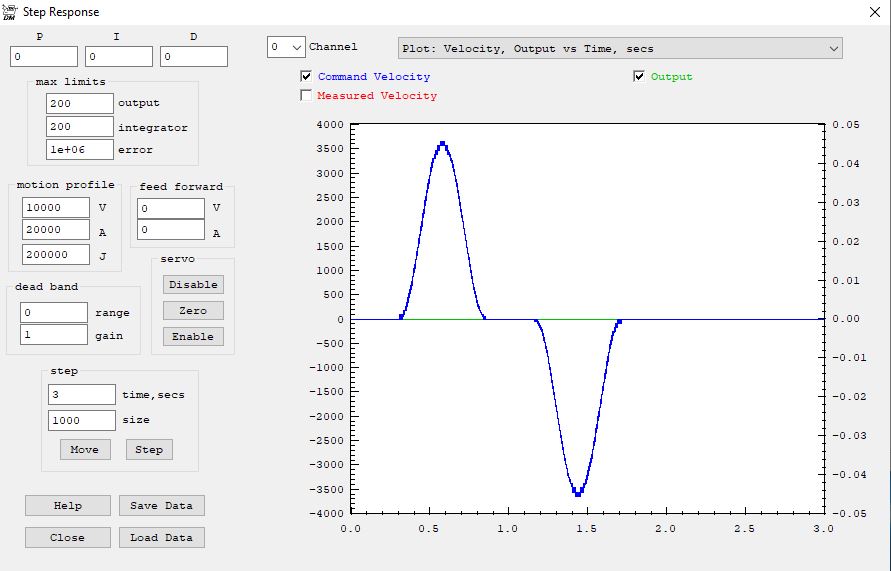

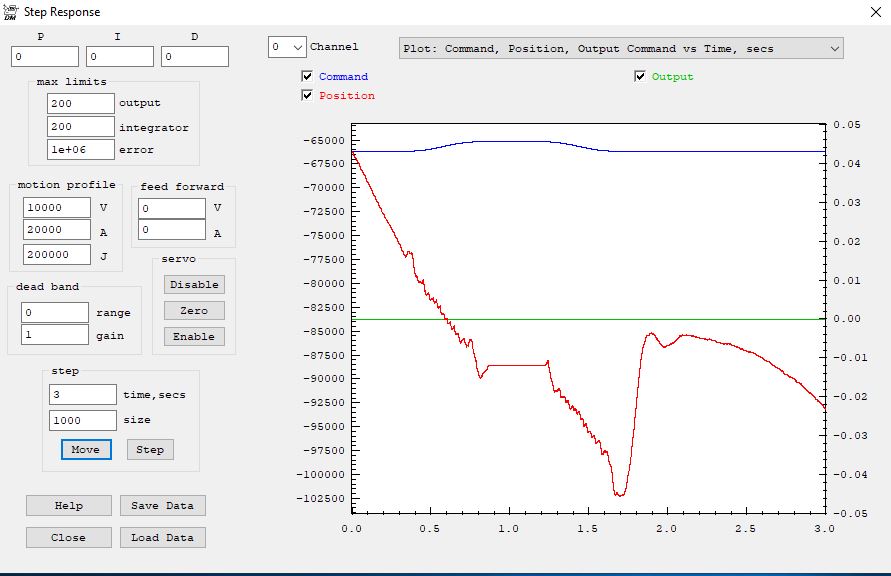

[Igor]

Good afternoon Tom. During these settings, there are no anomalies in the motor driver operation. Motor shuts in normal mode. Axle is mixed without breaks and any postage noises

[Igor]

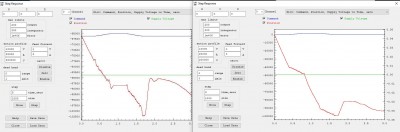

PA_06 a pre-emptive co-factor to compensate for the reaction delay occurring in the current control circuits and position
PA_10 retention current in% of the total phase current. Also affects the starting current at start of movement. Large values increase heating while increasing permissible accelerations for the drive = ALL ZERO driver motor.right diagram

[TomKerekes]

Hi Igor,

The Encoder Position looks like garbage. Probably picking up noise from the Stepper Motor wiring. Are you using shielded cables? Test the encoder by moving the axis by hand.
