trying to use some G41 action

[turbothis]

i would like to get some experience with this but cant get the G41 to work
can dynomotion do the G41 P0.1 input? or more like G41 and D1?

quick example i am getting an error on

Code: Select all

G20G17G90G94
N7S500M03
N8G00X-8.55Y-0.775Z0.5M08
N9Z0.01
N10G01Z-0.305F90.0
N11X-7.75Y-0.775F3.0
N12X-1.48Y-0.775
N13X-1.48Y-0.555
N14X-7.75Y-0.555
N15X-8.45Y-0.555
N16G00Z0.5

[turbothis]

[TomKerekes]

Hi Scott,

Looks like you forgot to turn off Radius Compensation with G40.

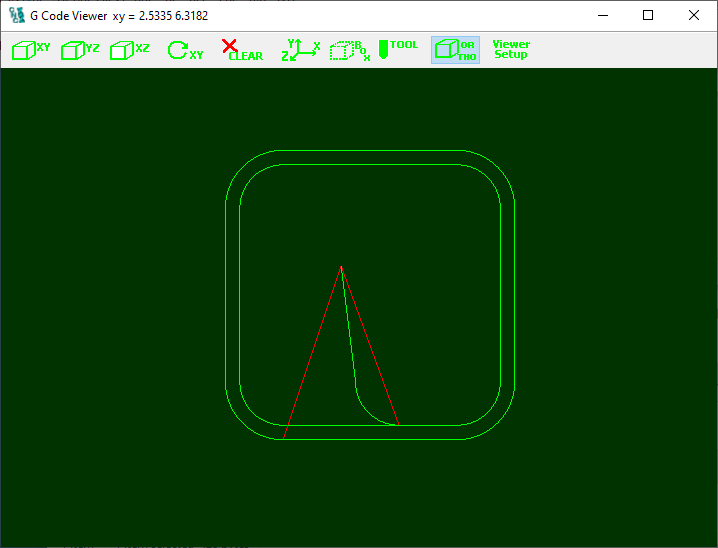

See the example: ToolRadiusInternalContour.ngc

It demos a path with and without compensation turned on.

Note you might want to select the Fanuc mode of compensation entry mode. See the wiki.


[turbothis]

Thanks
i think i just learned i am screwed for cutter comp
i have an internal pocket i cut out with a key seat cutter and it just goes in a square contour

matt ( not scott)

[turbothis]

Code: Select all

G20G17G40G90G94
N7S500M03
N8G00X-8.55Y-0.775Z0.5M08
N9Z0.01
N10G01Z-0.305F90.0
N11X-7.75Y-0.775F3.0
N12X-1.48Y-0.775
N13X-1.48Y-0.555
N14X-7.75Y-0.555
N15X-8.45Y-0.555
N16G00Z0.5

N17X-1.48Y-0.665
N18Z0.01
N19G01Z-0.47F10.0
N20X-1.48Y-0.555F1.0
N21X-3.255Y-0.555F4.0
N22X-3.255Y-0.775F1.0
N23X-1.48Y-0.775F4.0
N24X-1.48Y-0.665

N26Z-0.64F2.0
N27X-1.48Y-0.63F1.0
N28X-1.7866Y-0.63F3.0
N29G02X-2.0485Y-0.555I0.0J0.495
N30G01X-4.65Y-0.555
N31X-5.2Y-0.555
N32X-5.755Y-0.555
N33X-5.755Y-0.775F1.0
N34X-2.0485Y-0.775F3.0
N35G02X-1.7866Y-0.7I0.262J-0.42
N36G01X-1.48Y-0.7
N37X-1.48Y-0.665

N38Z-0.85F2.0
N39X-1.48Y-0.63F1.0
N40X-1.7866Y-0.63F3.0
N41G02X-2.0485Y-0.555I0.0J0.495
N42G01X-4.65Y-0.555
N43X-5.2Y-0.555
N44X-5.755Y-0.555
N45X-5.755Y-0.775F1.0
N46X-2.0485Y-0.775F3.0
N47G02X-1.7866Y-0.7I0.262J-0.42
N48G01X-1.48Y-0.7
N49X-1.48Y-0.665

N50Z-1.07F2.0
N51X-1.48Y-0.63F1.0
N52X-1.7866Y-0.63F3.0
N53G02X-2.0485Y-0.555I0.0J0.495
N54G01X-4.4138Y-0.555
N55G02X-4.65Y-0.615I-0.2362J0.435
N56G01X-5.2Y-0.615
N57G02X-5.4362Y-0.555I0.0J0.495
N58G01X-5.755Y-0.555
N59X-5.755Y-0.775F1.0
N60X-2.0485Y-0.775F3.0
N61G02X-1.7866Y-0.7I0.262J-0.42
N62G01X-1.48Y-0.7
N63X-1.48Y-0.665

N64Z-1.25F2.0
N65X-1.48Y-0.63F1.0
N66X-1.7866Y-0.63F3.0
N67G02X-2.0485Y-0.555I0.0J0.495
N68G01X-2.9138Y-0.555
N69G02X-3.15Y-0.615I-0.2362J0.435
N70G01X-3.6Y-0.615
N71G02X-3.8362Y-0.555I0.0J0.495
N72G01X-4.4138Y-0.555
N73G02X-4.65Y-0.615I-0.2362J0.435
N74G01X-5.2Y-0.615
N75G02X-5.4362Y-0.555I0.0J0.495
N76G01X-5.755Y-0.555
N77X-5.755Y-0.775F1.0
N78X-2.0485Y-0.775F3.0
N79G02X-1.7866Y-0.7I0.262J-0.42
N80G01X-1.48Y-0.7
N81X-1.48Y-0.665

N82Z-1.4F2.0
N83X-1.48Y-0.63F1.0
N84X-1.7866Y-0.63F3.0
N85G02X-2.0485Y-0.555I0.0J0.495
N86G01X-2.9138Y-0.555
N87G02X-3.15Y-0.615I-0.2362J0.435
N88G01X-3.6Y-0.615
N89G02X-3.8362Y-0.555I0.0J0.495
N90G01X-4.4138Y-0.555
N91G02X-4.65Y-0.615I-0.2362J0.435
N92G01X-5.2Y-0.615
N93G02X-5.4362Y-0.555I0.0J0.495
N94G01X-5.755Y-0.555
N95X-5.755Y-0.775F1.0
N96X-2.0485Y-0.775F3.0
N97G02X-1.7866Y-0.7I0.262J-0.42
N98G01X-1.48Y-0.7
N99X-1.48Y-0.665
N100G00Z0.5M09M05
X-7.0Y1.0Z1.0
N101M30

[turbothis]

OK I THINK I GOT SOME WHERE TOMORROW I CAN TEST SOME CUTS!
