6.1 Parallel Port Connection

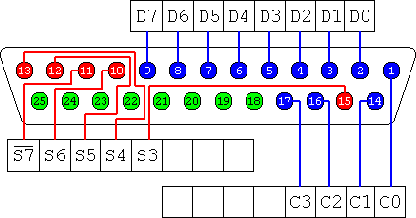

Diagram of the 25 pin connector used on most computers for connecting to the printer. Refer to the following subsection for pin assignments when using EMC.
